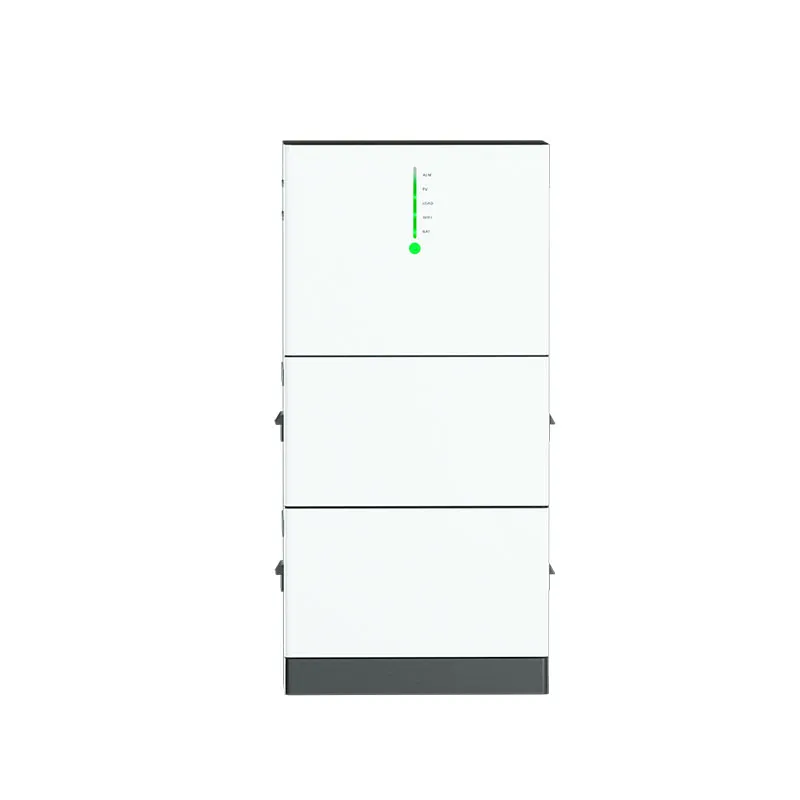

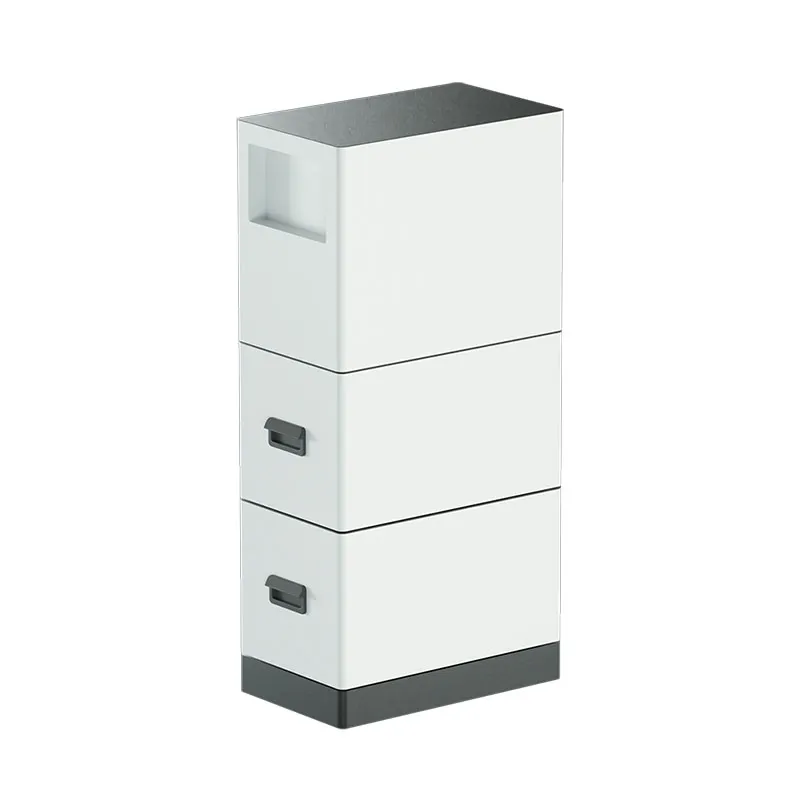

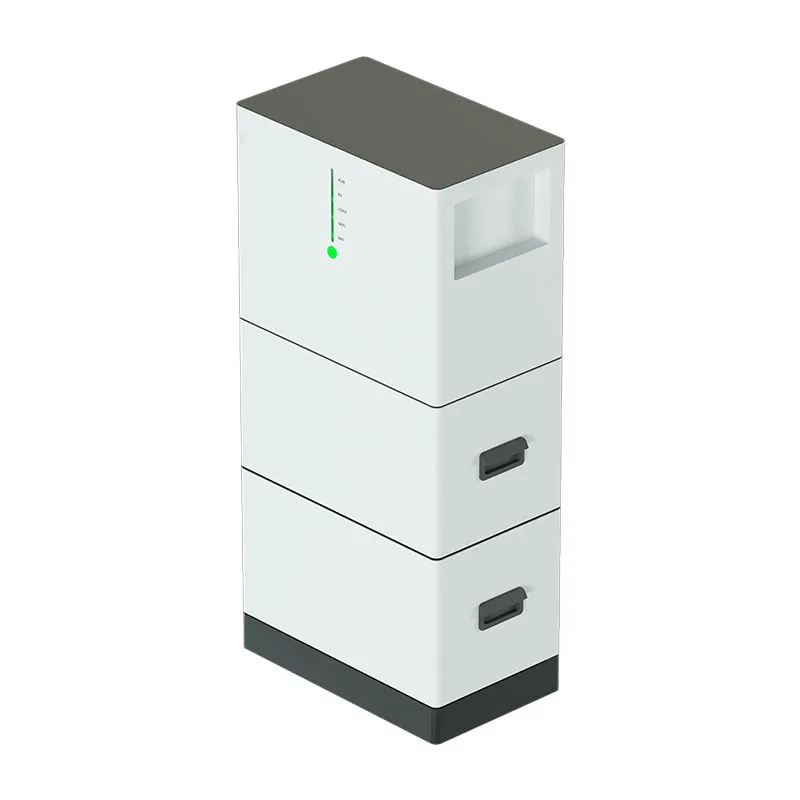

51.2V 50Ah All-in-One Balcony Solar Power Storage System
PTBMY Balcony Solar Power System

51.2V 50Ah All-in-One Balcony Solar Power Storage System

The PTBMY All-in-One Balcony Solar Energy Storage System is a compact micro photovoltaic power solution that integrates LiFePO4 batteries and intelligent PV control modules into a single unit. Working seamlessly with PV panels, micro-inverters, smart meters, and the power grid, it forms a complete balcony solar energy storage system for residential applications.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTBMY All-in-One Balcony Solar Energy Storage System is a compact micro photovoltaic power solution that integrates LiFePO4 batteries and intelligent PV control modules into a single unit. Working seamlessly with PV panels, micro-inverters, smart meters, and the power grid, it forms a complete balcony Solar Energy Storage System for residential applications.


This system efficiently stores solar-generated DC power and supplies stable electricity to household loads and the grid, delivering high safety, easy installation, intelligent control, and long service life for clean and sustainable energy use.




Product Features

Grade A LiFePO4 Battery Cells

Wi-Fi Smart Communication Control

Real-time monitoring and intelligent system management.

Parallel Connection up to 5 Units

Long Cycle Life – 6000 Cycles @ 80% DOD

Portable & Modular Design

Accurate Power Measurement & Management


Application Areas

Energy Storage & Power Management Systems

Emergency & Backup Power Solutions

Telecommunications & Fire Protection Systems


Parameters

Battery
Battery typeLiFePO4
Rated voltage51.2V(16S)
Battery capadity2.56kWh
Cycle life6000(25℃)
Discharge depth90%
Maximum charging current60A
DC input (PV input)
Maximum input power800Wx2 max
Mppt voltage range18V-60V
Start-up voltage12V
Operating voltage range12V-60V
Input conversion efficiency)98% Max
Maximum input voltage60V
Maximum input current per channel25A
Maximum input short-circuit protection current (transient) per channel90A
Number of MPPT tracking2
MPPT tracking efficiency99%
DC output (INV output)
Maximum output power800Wx2 Max
Output conversion efficiency98% Max
Operating voltage range18V-55V
Maximum output voltage55V
Maximum output current per channel28
Maximum input short-circuit protection
current (transient) per channel		90A
General parameters
Product dimensionsControl module (with battery):
420 * 280 * 305.5mm
Battery: 420 * 280 * 204mm
Base: 420 * 280 * 32.5mm
Packaging dimensions520mmx270mmx310mm
Net weight≈20kg
Maximum number of external parallel

         slave Battery Packs		5 PCS
Capacity of a single slave battery pack2.56kWh
Charging operating temperature0℃-55℃
Discharging operating temperature-20℃-60℃
Protection gradeIp65
Communication modeWIFI
Heat dissipation modenatural cooling
