PTBC-AC to DC RV Converter

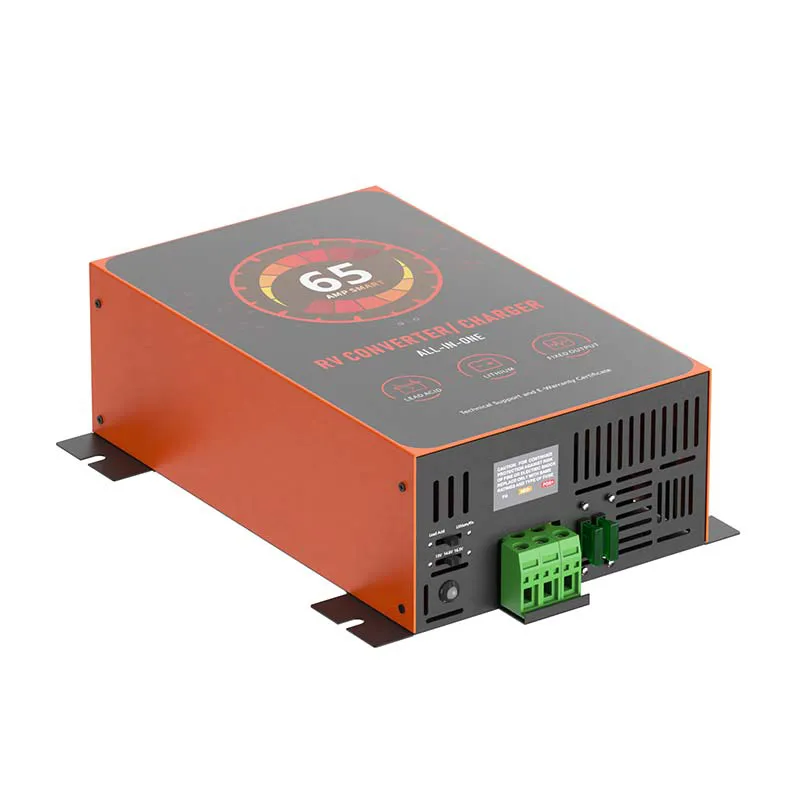

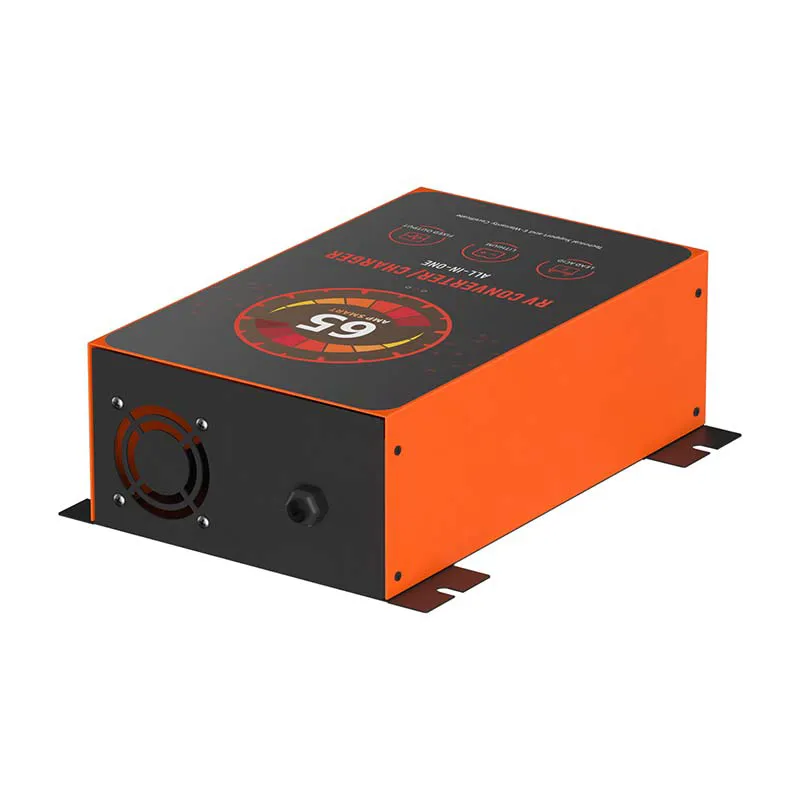

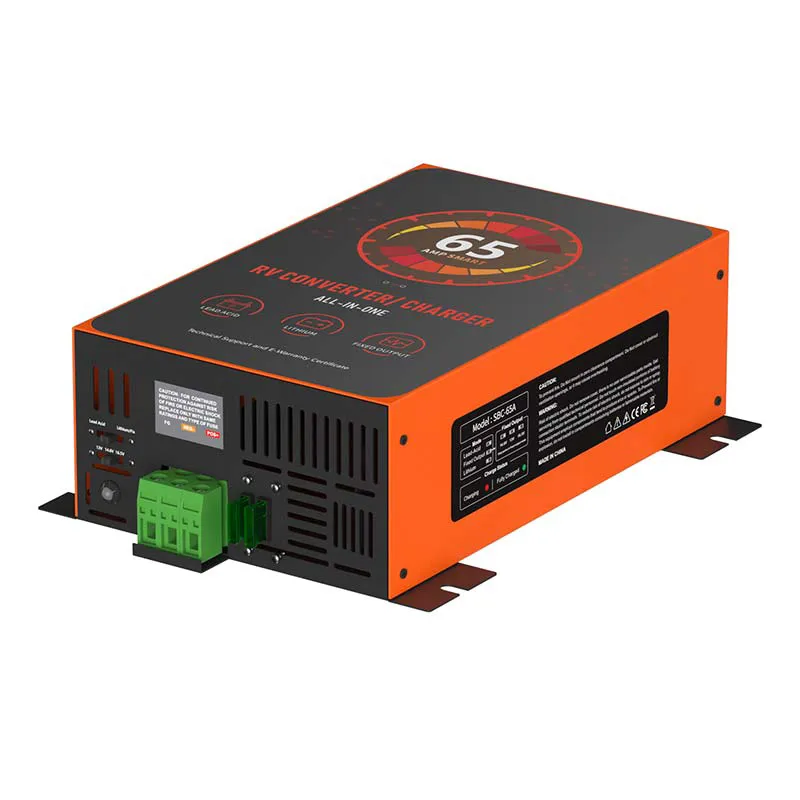

PTBC 65A AC to DC RV Converter Battery Charger for Camper Trailer Power System

Advanced Intelligent Protection System
Compatible with Multiple Battery Types (Flooded, Gel, AGM, Lithium)
Efficient Two/Three-Stage Smart Charging

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTBC AC to DC RV Converter is a high-efficiency power management solution designed for RVs and campers. It converts external AC power into stable DC output to supply onboard electrical devices while simultaneously charging and managing the RV battery system. With intelligent charging control and reliable performance, it ensures safe and efficient power distribution for mobile power applications.



Product features

1 Compatible with multiple battery types: Flooded, Gel, AGM, and Lithium

2 Intelligent protection system: battery isolation, over-voltage, over-temperature, and short-circuit protection

3 Compensates for voltage drop caused by long cable runs

4 Charges auxiliary batteries up to 100% capacity

5 Extends runtime for onboard loads such as refrigerators and lighting

6 Improves overall battery lifespan and performance


Parameters

ModelPTBC-35APTBC-45APTBC-55APTBC-65APTBC-80APTBC-100APTBC-125A
DC Output
Output CurrentMax. 35AMax. 45AMax. 55AMax. 65AMax. 80AMax. 100AMax. 125A
Charging Voltage14.6Vdc
Chargin Way3 steps for lead acid mode / 2 steps for Lithium mode
Fix Output Voltage13V/14.6V/16.5V adjustable
Max DC Output Power510W655W798W942.5W1160W1450W1812.5W
AC Input
Rated Input Voltage120Vac
Input Voltage Range90-120Vac
Input Frequency60Hz(47Hz-63Hz)
Environment
Working Temperature&Humidity-10-60℃,20%-90%RH
Storage Temperature&Humidity-20-85℃,10%-95%RH
Fan CoolingCooling fan starts when temperature>45℃,system stops working when temperature>95℃(+10%)
LED
Red ColourBattery charging / runs loads in Fix-voltage mode
Green ColourBattery fully charged / no load in Fix-voltage mode
Basic parameters
Product size (mm)265*182*93265*182*93265*182*93274*207*94274*207*94274*207*94274*207*94
Package size (mm)320*227*160320*227*160320*227*160320*260*160320*260*160320*260*160320*260*160
NW/PCS (kg)2.12.22.32.72.73.33.3
GW./Ctm (kg)2.42.52.6333.63.7
