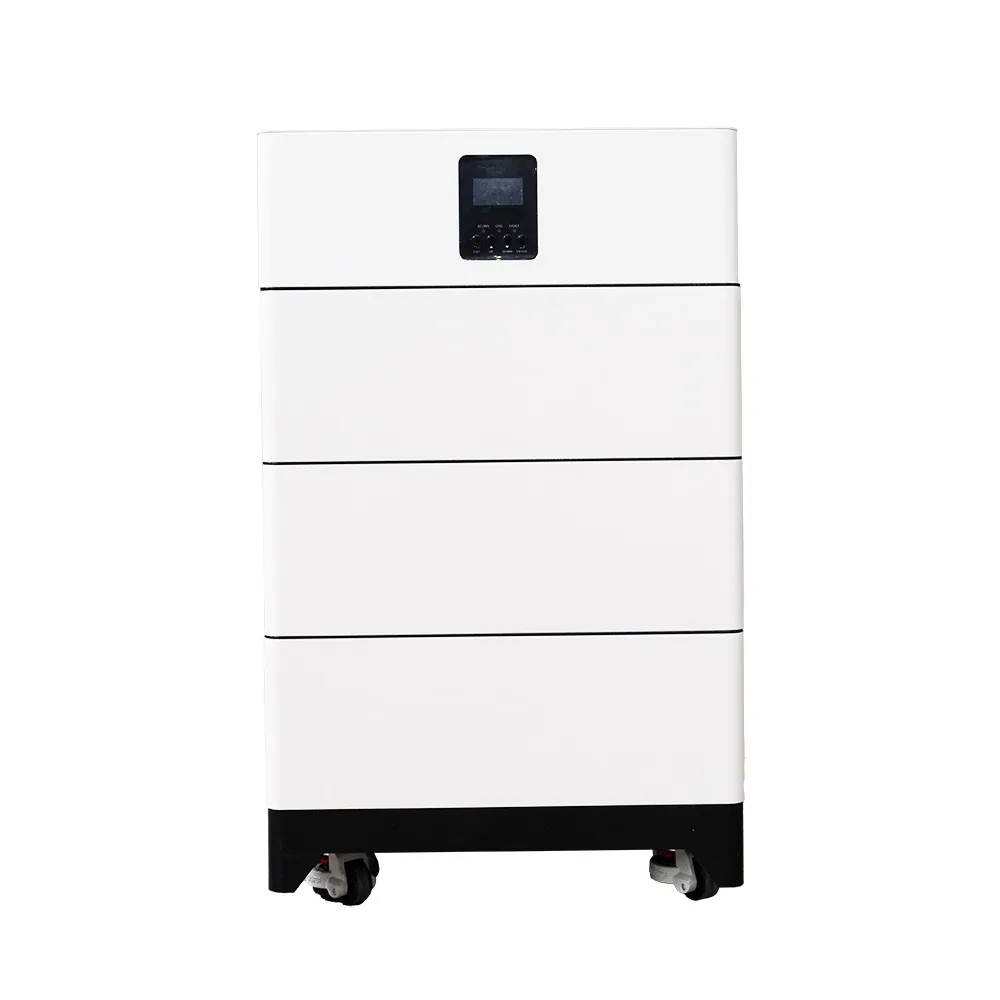

PTBM- Stacked Energy Storage Lithium Battery
PTBM Stacked Energy Storage Lithium Battery

PTBM- Stacked Energy Storage Lithium Battery

PTBM​ series household energy storage use high-quality square aluminum-cased lithium iron phosphate cells and are equippedwith intelligent BMS. long cycle life, high safety performance, beautiful appearance, free combination, and easy installation.The battery pack is equipped with a touch LCD display to visualize operating data Compatible with most brands of hybrid invertersand able to communicate with them. It is widely used in distributed photovoltaic systems and home energy storage systemsProvide efficient and clean energy for household, industrial, commercial, agricultural and other electr...

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

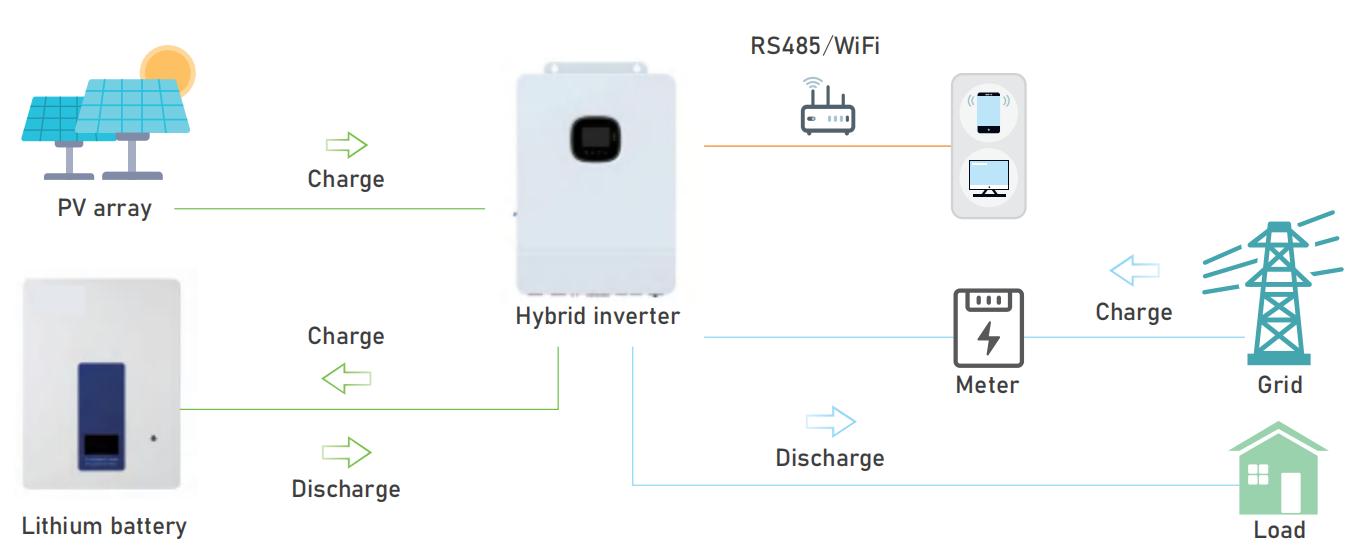

PTBM series household energy storage use high-quality square aluminum-cased lithium iron phosphate cells and are equippedwith intelligent BMS. long cycle life, high safety performance, beautiful appearance, free combination, and easy installation.The Battery Pack is equipped with a touch LCD display to visualize operating data Compatible with most brands of hybrid invertersand able to communicate with them. It is widely used in distributed photovoltaic systems and home Energy Storage SystemsProvide efficient and clean energy for household, industrial, commercial, agricultural and other electrical equipment.


Product Features

·  TOP brand battery cells,Quality guaranteed

·  The PACK+ cabinet features dual fire protection,Ensuring a safer system

·  Compatible with communication of most brand inverters

·  Touch screen design, convenient interaction

·  Support customization of Bluetooth and WiFi communication

·  Support OEM/ODM




Parameters

System specification51.2V 100Ah51.2V 200Ah51.2V 314Ah
Cells combination16S1P16S1P16S1P
Battery Pack capacity5.12kWh10.24kWh16.07kWh
Standard discharge current50A100A140A
MAX. discharge current100A105A140A
Working voltage range43.2–57.6VDC43.2–57.6VDC43.2–57.6VDC
Standard voltage51.2VDC51.2VDC51.2VDC
MAX. charging current50A105A140A
MAX. charging voltage57.6V57.6V57.6VDC
Discharge depth and life>6000 times (0.5C@25℃) Energy retention rate ≥80%
Working humidity65±20%RH
Operating temperature0~+40℃
Working altitude≤2500m
FirefightingAerosol PACK 12g
Cooling methodNatural cooling
IP ratingIP20
Installation methodStacked installation
CommunicationDefault: RS485/RS232/CAN (Optional WiFi/4G/Bluetooth)
Warranty5-10Years
CertificationCE ROHS FCC UN38.3 MSDS ISO9001
Product size485*490*220mm705*615*180mm705*615*292mm
Package size550*550*270mm755*655*270mm750*655*290mm
Net weight46kg85kg118kg
Gross weight52kg102kg140kg

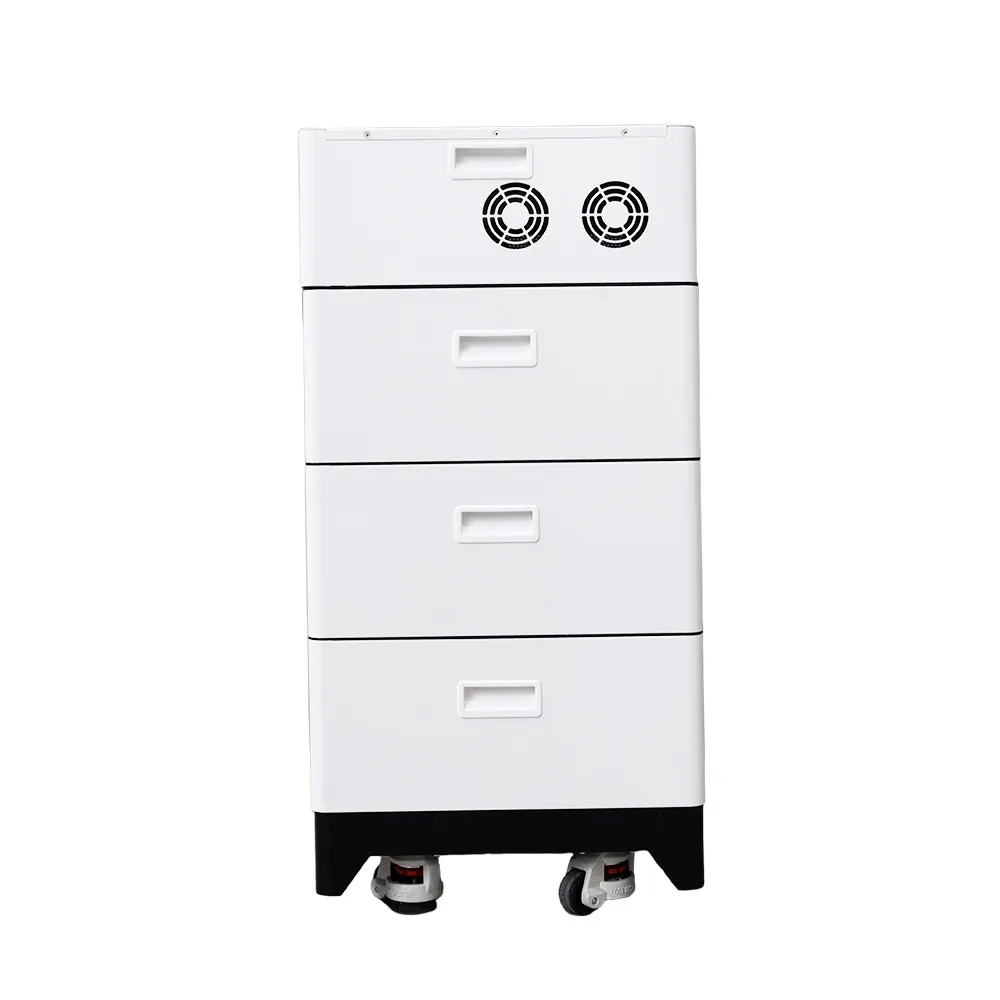

*The stacked battery is additionally equipped with a base, cover plate, and casters(Cover plate: 8mmBase:52mmCaster:6mm)
