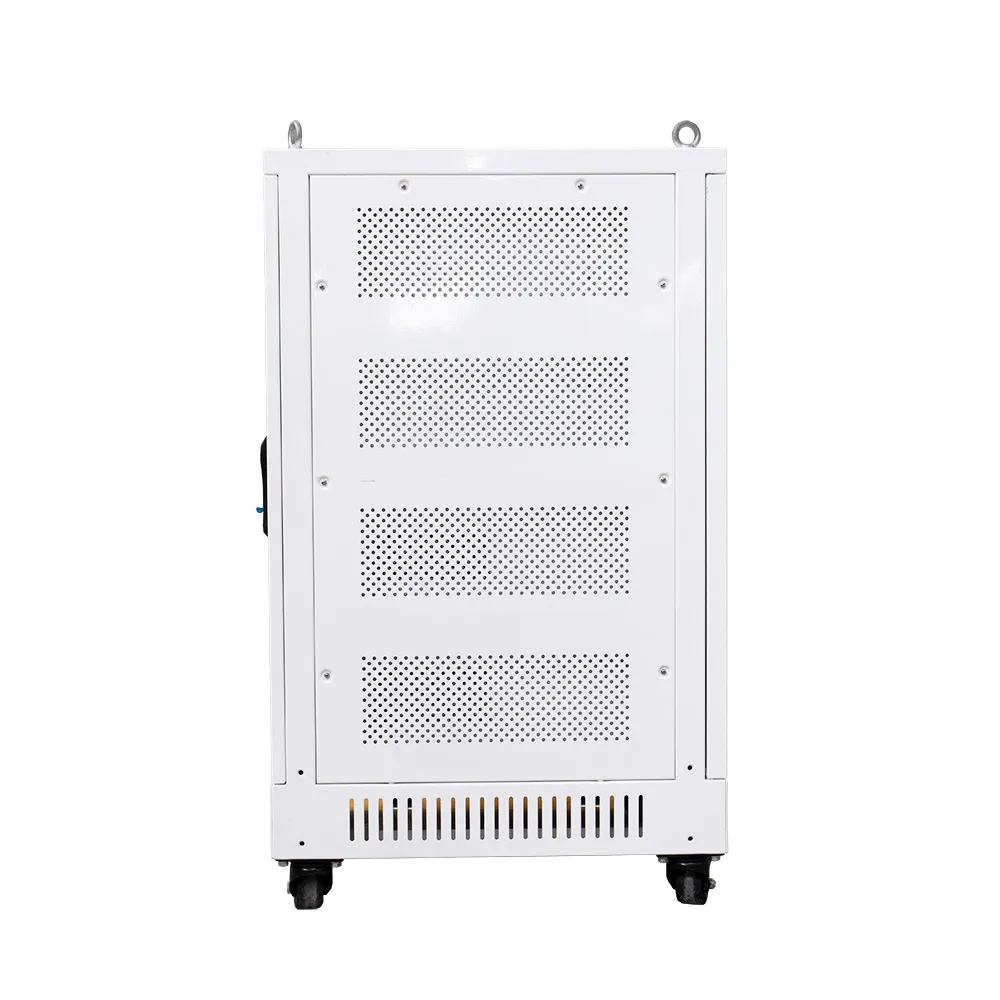

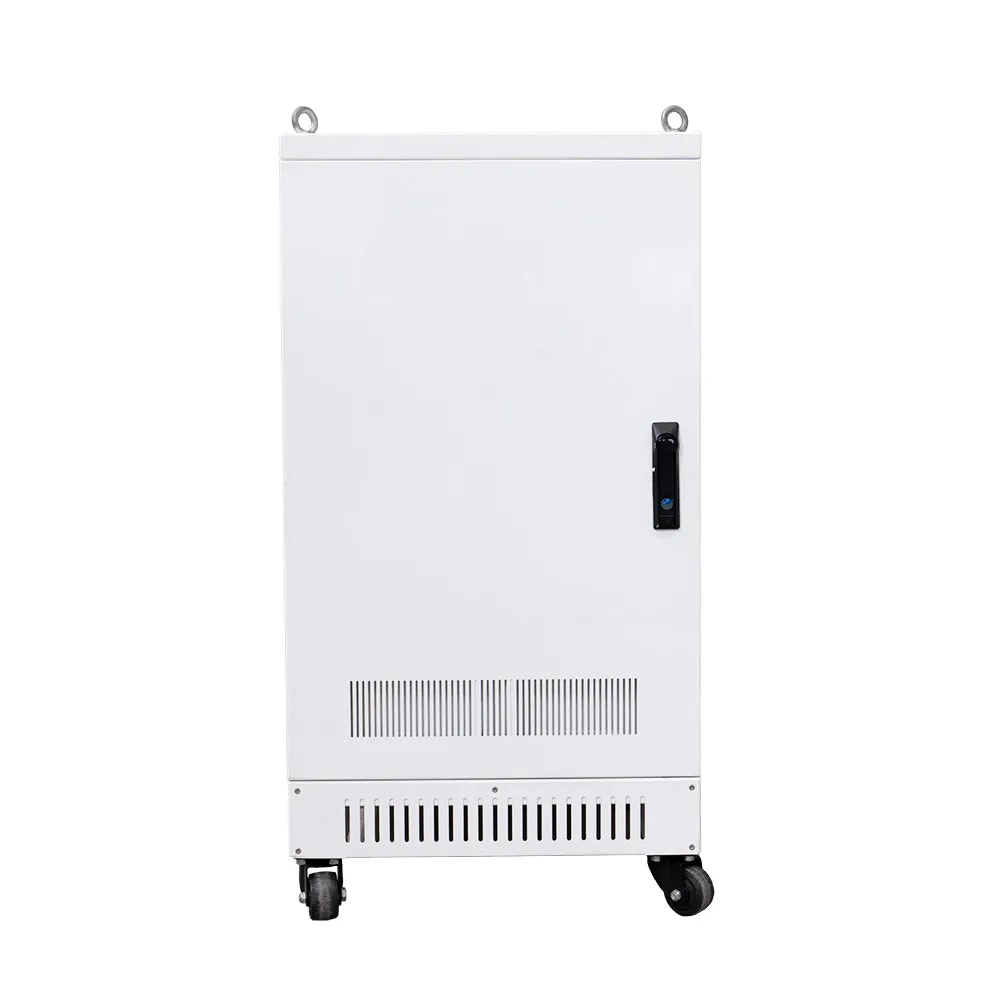

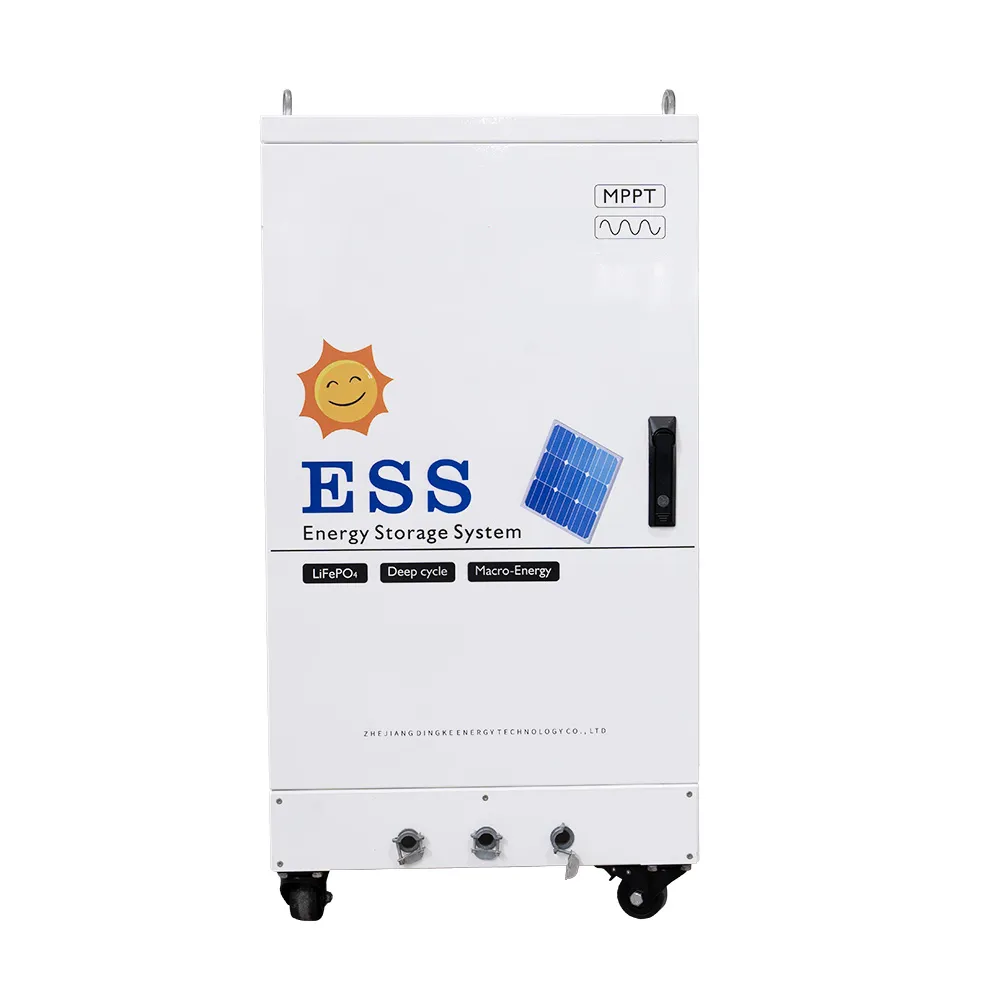

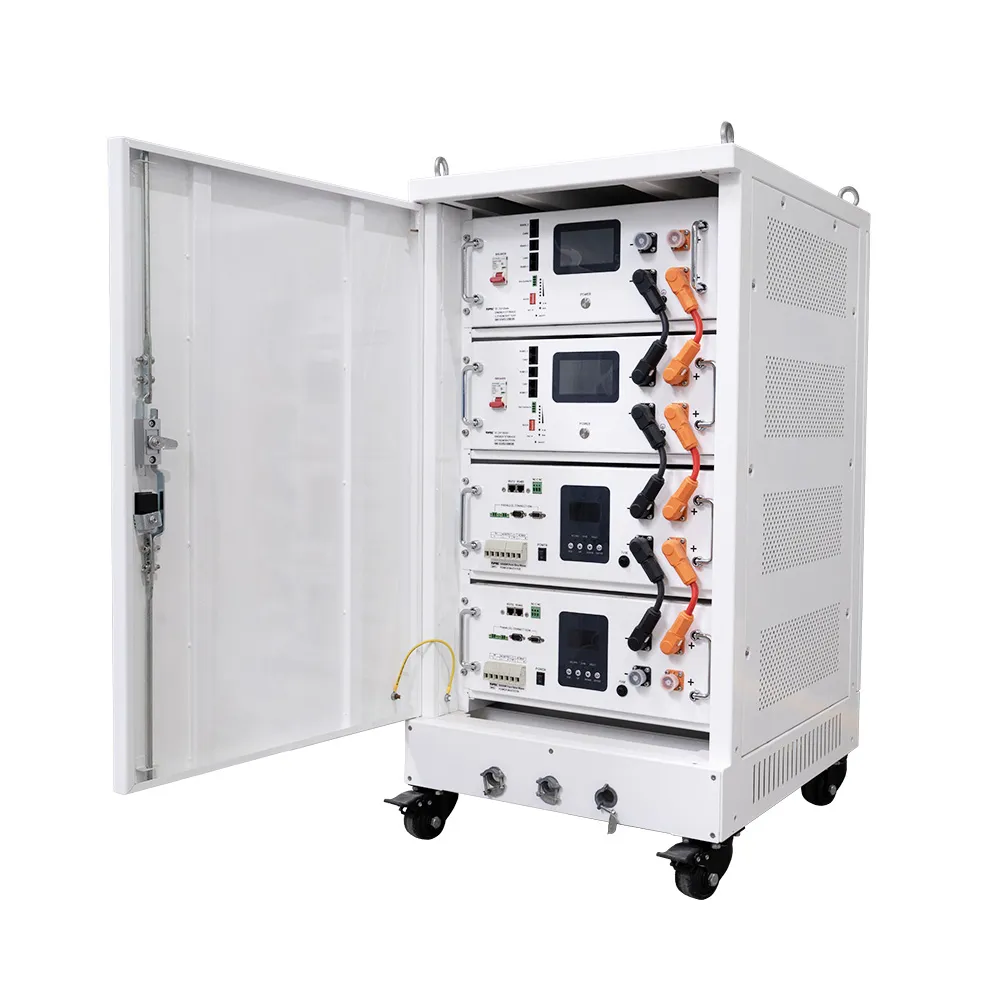

PTBS - Cabinet Energy Storage Lithium Battery

PTBS series is a high-pertormance energy storage system Independently developed by us. It uses high-quality lth lum Ironphos phate batterles and is equlpped with an inteligent BMS. It has long ycle le, high salety, and good sealing: High-frequencyof-grid hybrid Inverter, bult-in MPPT controller. can provde efficlent and rellable energy solutions for solar oft-grid powergeneration systems, household solar storage systems, and commercial energy storage systems.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

PTBS series is a high-pertormance Energy Storage System Independently developed by us. It uses high-quality lth lum Ironphos phate batterles and is equlpped with an inteligent BMS. It has long ycle le, high salety, and good sealing: High-frequencyof-grid hybrid Inverter, bult-in MPPT controller. can provde efficlent and rellable energy solutions for solar oft-grid powergeneration systems, household solar storage systems, and commercial energy storage systems.

The system is equipped with a self-developed APP, supports 10S/Androld mobile phones, remotely cantrols the charging andd scharging of the Battery Pack monltors the system operating data in real tme, and quickly entersthe troubleshooting workwhen the system fails, so as to restore the effective power supply more efficiently.



Product Features

·  TOP brand battery cells,Quality guaranteed

·  The PACK+ cabinet features dual fire protection,Ensuring a safer system

·  Compatible with communication of most brand inverters

·  Touch screen design, convenient interaction

·  Support customization of Bluetooth and WiFi communication

·  Support OEM/ODM


Parameters

System Capacity5.12kWh/5kW10.24kWh/5kW16kWh/8kW
Standard discharge current50A50A50A
Max. discharge current100A100A100A
Working DC voltage range43.2-57.6VDC43.2-57.6VDC43.2-57.6VDC
Standard Voltage51.2VDC51.2VDC51.2VDC
Max. charging current50A50A50A
Max. charging voltage57.6V57.6V57.6V
Rated solar input voltage360VDC
MPPT tracking voltage range120V-450V
Max input voltage (VOC) at lowest temperature500V
Max input power5500W5500W+5500W
Number of MPPT ways1 way2 ways
DC input voltage range42-60VDC
Rated grid power input voltage220VAC/230VAC/240VAC
Grid power input voltage range170VAC-280VAC (UPS mode) / 120VAC-280VAC (Inverter mode)
Grid input frequency range45Hz-55Hz (50Hz); 55Hz-65Hz (60Hz)
Inverter output efficiency94%(MAX)
Inverter output voltage220VAC±2%/230VAC±2%/240VAC±2%(Inverter mode)
Inverter output frequency50Hz±0.5 or 60Hz±0.5(Inverter mode)
Inverter output waveformPure Sine Wave
Grid output efficiency>99%
Max mains charging current60A
Max solar charging current100A
Max charging current (Grid+solar)100A
Optional modeGrid priority/Solar priority/Battery priority

*Customized different brands of cell and different voltage, capacity, dimensions/color, OEM/ODM services
