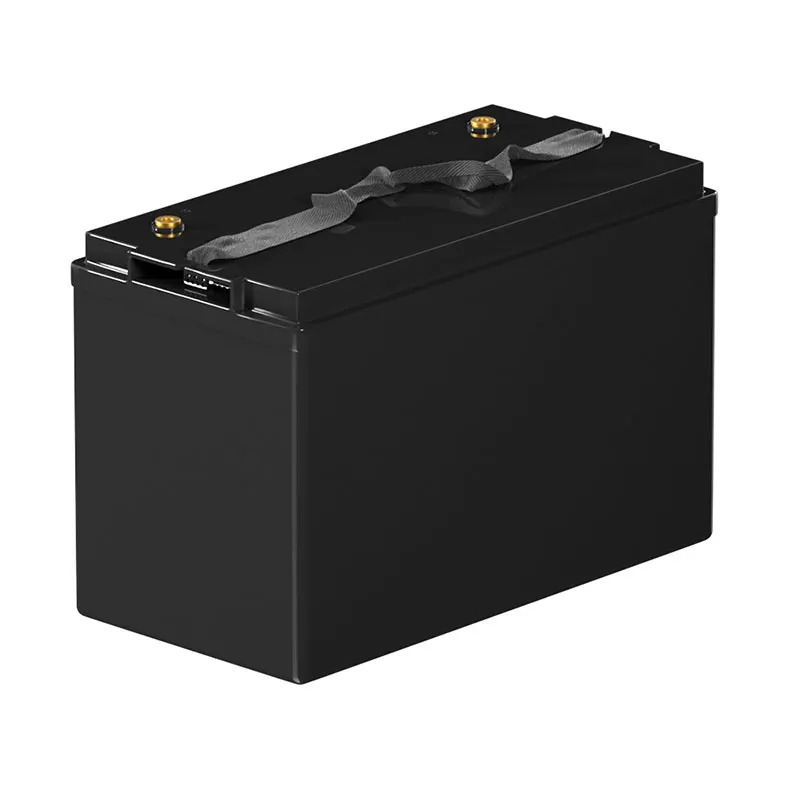

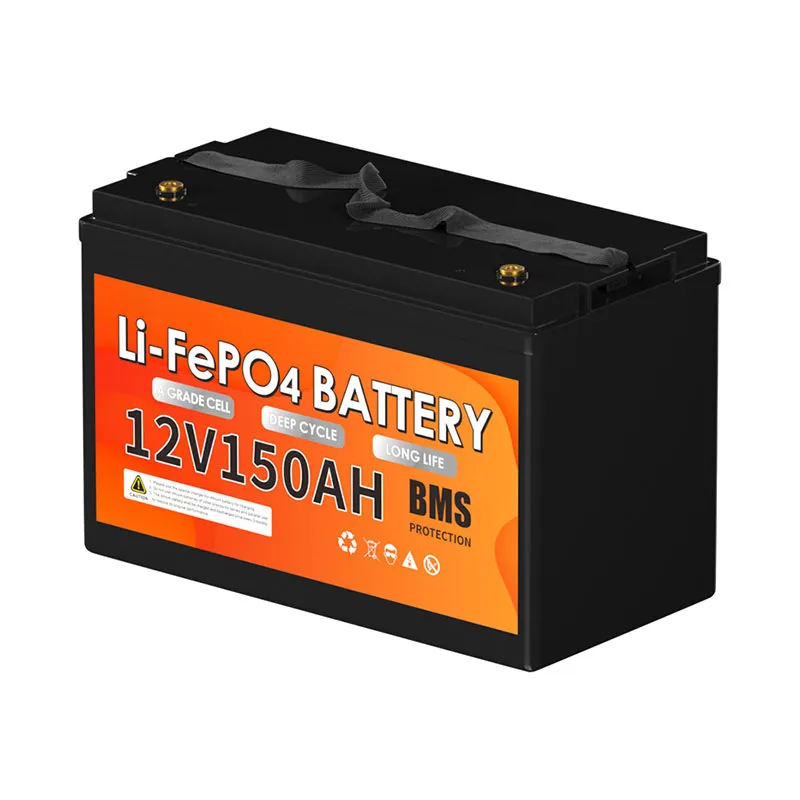

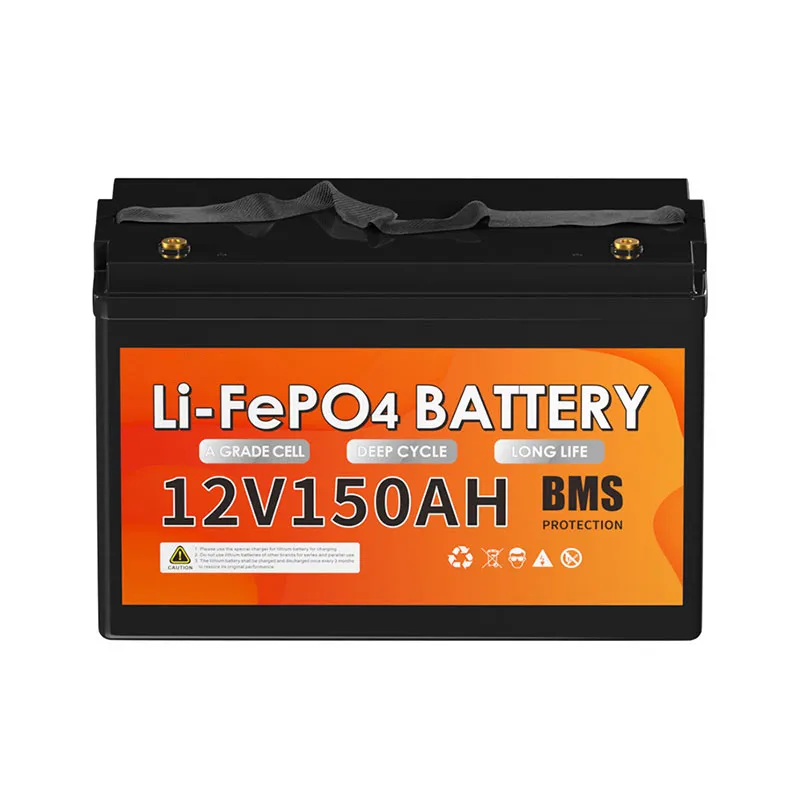

PTBT-12V 150Ah Energy Storage Lithium Battery
PTBT Energy Storage Lithium Battery

PTBT-12V 150Ah Energy Storage Lithium Battery

12.8V / 25.6V Lithium Battery
100Ah / 150Ah / 200Ah
Compact, lightweight design with intelligent BMS protection.
Ideal for home energy storage and backup power systems.
Optional smart communication for real-time monitoring.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTBT Plastic LiFePO4 Energy Storage Battery is engineered with premium long-life lithium iron phosphate cells and a high-performance BMS to deliver reliable protection and intelligent battery management. Compared with traditional batteries, it offers wider application coverage, enhanced safety, and significantly longer service life, making it an ideal solution for modern Energy Storage Systems.



Product Features

Grade A LiFePO4 Battery Cells

High-Current BMS Options: 50A / 100A / 150A / 200A

Ultra-Long Cycle Life – Up to 6000 Cycles @ 80% DOD

IP67 Waterproof & Dustproof Design

Optional Bluetooth Monitoring

Series & Parallel Connection Support

Optional LCD Display



Application Areas

1.Energy Storage & Power Management Systems

2.Emergency & Backup Power Solutions

3.Telecommunications & Fire Protection Systems


Parameters

ModelEBT-12.8100EBT-12.8150EBT-12.8200
Standard voltage12.8V12.8V12.8V
Standard capacity100Ah150Ah200Ah
Standard energy1.28kWh1.92kWh2.56kWh
Working voltage10-14.6V10-14.6V10-14.6V
Standard charging current50A50A50A
Standard discharging current100A100A100A
Suggested DOD80%
Cycle life>6000 cycles
IP RatingIp67
Operating temperature for discharge-20℃-60℃
Operating temperature for charge0℃-45℃
CommunicationBT optional
DisplayLCD display optional
Warranty5 years
CertificateUN38.3/MSDS/CE/ROHS/FCC
NW.(kg)9.11517.6
GW.(kg)12.22022
Product size (mm)256*165*210532*207*215532*207*215
Package size (mm)390*235*310600*275*295600*275*295
