PTDKF -50kW/107kWh All in one system
PTDKP—All-in-One PV and Energy Storage System

PTDKF -50kW/107kWh All in one system

The PTDKF Series is an all-in-one integrated energy storage system, engineered to meet the demands of solar and energy storage applications. It delivers high energy efficiency, exceptional energy density, and seamless on-grid/off-grid photovoltaic integration, with robust environmental adaptability ideal for distribution and storage scenarios. The system is fully integrated within a single cabinet, combining an air-cooled air conditioner, hybrid inverter/PCS, BMS, lithium battery pack, high-voltage control box, fire protection system, electrical system, and safety auxiliary system for a turnke...

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

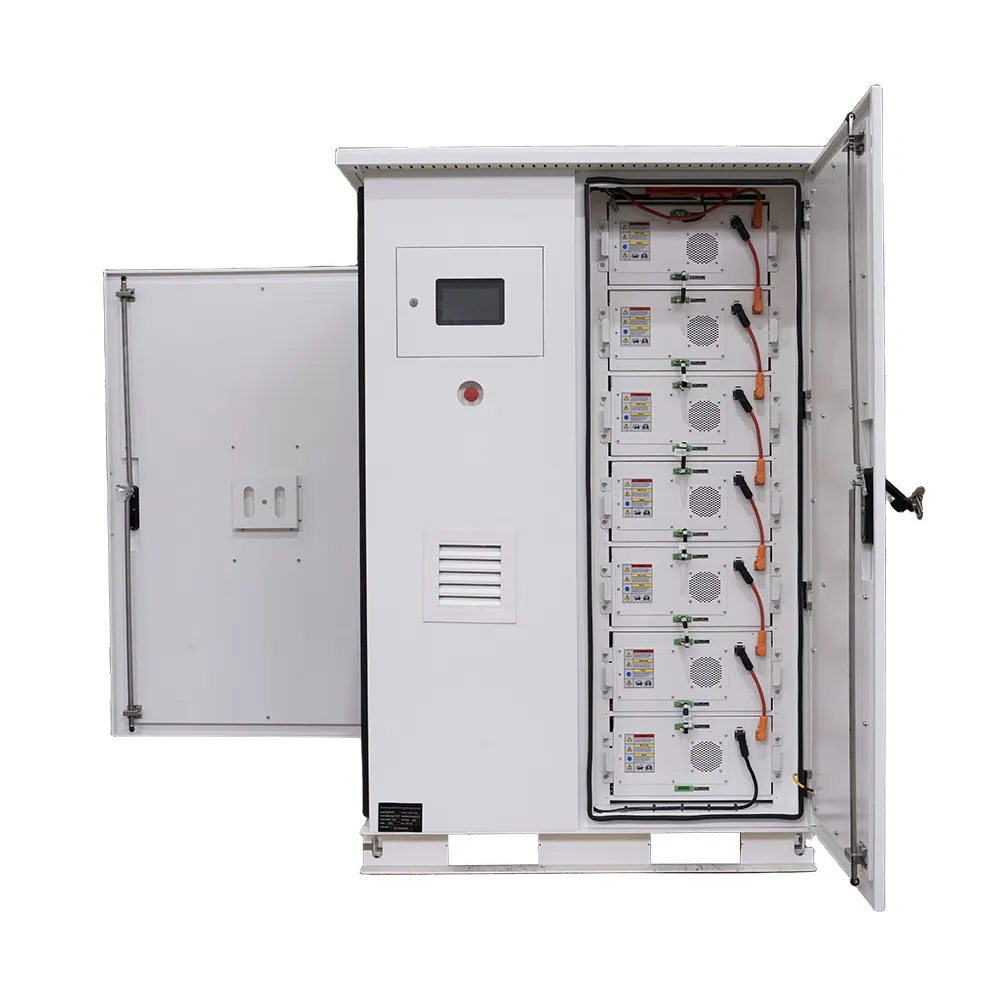

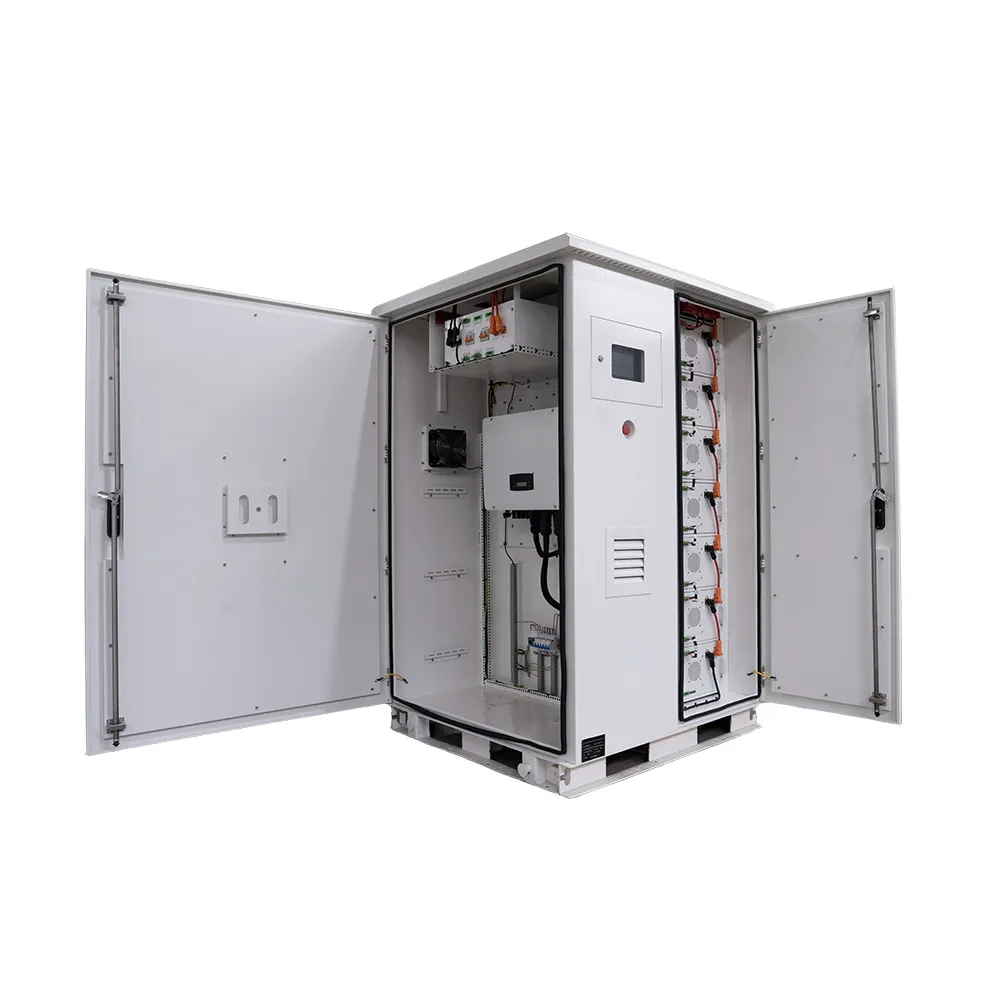

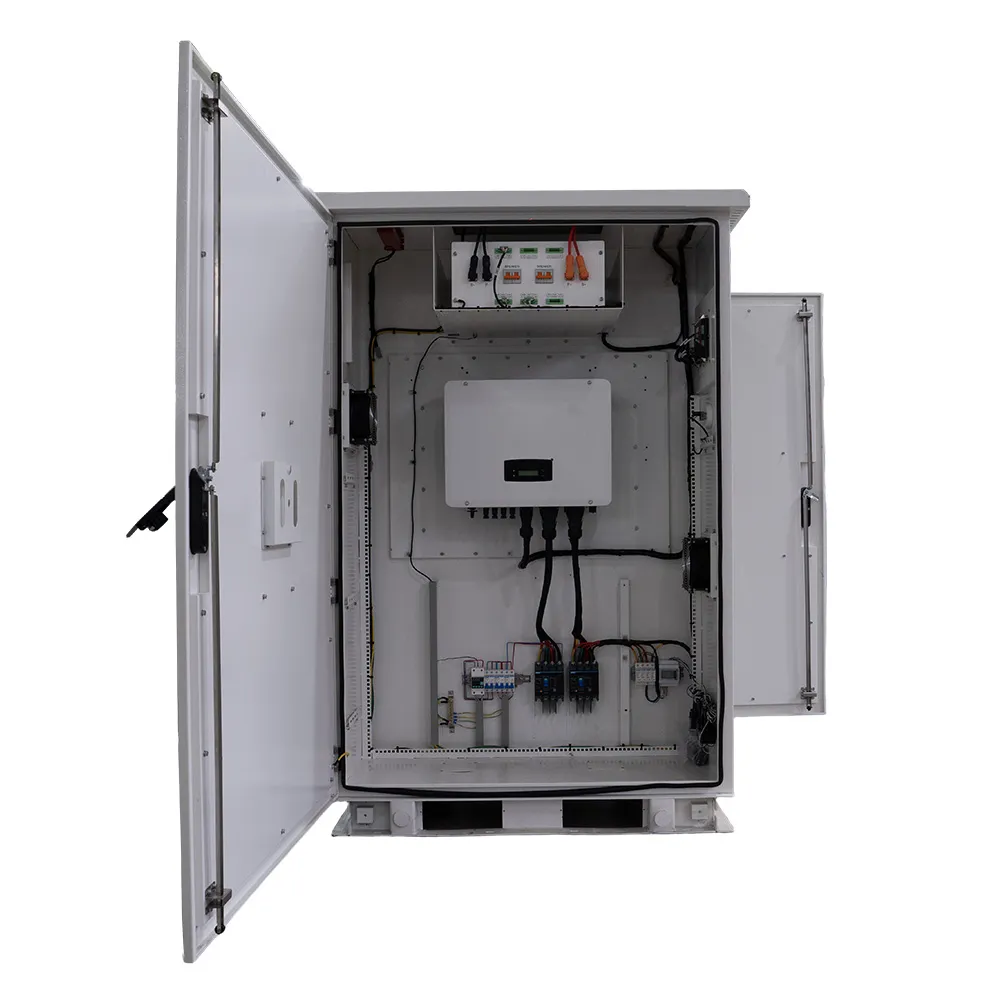

The PTDKF Series is an all-in-one integrated Energy Storage System, engineered to meet the demands of solar and energy storage applications. It delivers high energy efficiency, exceptional energy density, and seamless on-grid/off-grid photovoltaic integration, with robust environmental adaptability ideal for distribution and storage scenarios. The system is fully integrated within a single cabinet, combining an air-cooled air conditioner, hybrid inverter/PCS, BMS, Lithium Battery pack, high-voltage control box, fire protection system, electrical system, and safety auxiliary system for a turnkey solution.



Product Features

·  TOP brand battery cells,Quality guaranteed

·  The PACK+ cabinet features dual fire protection,Ensuring a safer system

·  EMS intelligent control,Integration of PV & B-ESS & Generator

·  Flexible deployment, easy wiring,Greater convenience

·  Air-cooled system, strong adaptability,High compatibility, and convenient maintenance

·  Both ON/OFF grid applications,Automatically and intelligently


Parameters

System specification20kW/51.2kWh30kW/61.44kWh50kW/107kWh
System battery DC voltage512V614V716V
Battery voltage range432-576VDC490-690VDC582-806VDC
Cell typeLFP 3.2V/100AhLFP 3.2V/100AhLFP 3.2V/150Ah
Single PACK configuration102.4V100Ah/10.24kWh102.4V100Ah/10.24kWh102.4V150Ah/15.36kWh
Number of system PACKs5 PCS6 PCS7 PCS
Total system capacity51.2kWh61.44kWh107kWh
Inverter rated power20kW30kW50kW
MAX. PV input power26kW39kW65kW
Charge and discharge rate≥0.5C≥0.5C≥0.5C
Rated grid voltage380V AC
Rated grid frequency50/60Hz ±5Hz
Battery cycle life>6000 times (0.5C@25℃) Energy retention rate ≥80%
System efficiency/discharge depthMAX efficiency 97% / DOD 90%
Thermal managementIntelligent air cooling
Fire fightingPACK aerosol/cabinet aerosol
Control methodLocal control system
Operating modeOn/off-grid
CommunicationCAN/RS485/WiFi
Access methodAC bottom entry/3-phase 4-wire(3LNPE)
Use ambient temperature0℃~+50℃
Use ambient humidity0~95%RH
Storage temperature-20℃~+60℃
Working altitude2000m (>2000m derated use)
IP ratingIP54
Product size1000*1106*1640mm1000*1106*1640mm1100*1205*2200mm
Product weight850kg950kg1200kg
CertificationPACK:CE ROHS; Equipment:UN38.3 MSDS
Warranty5 Years
