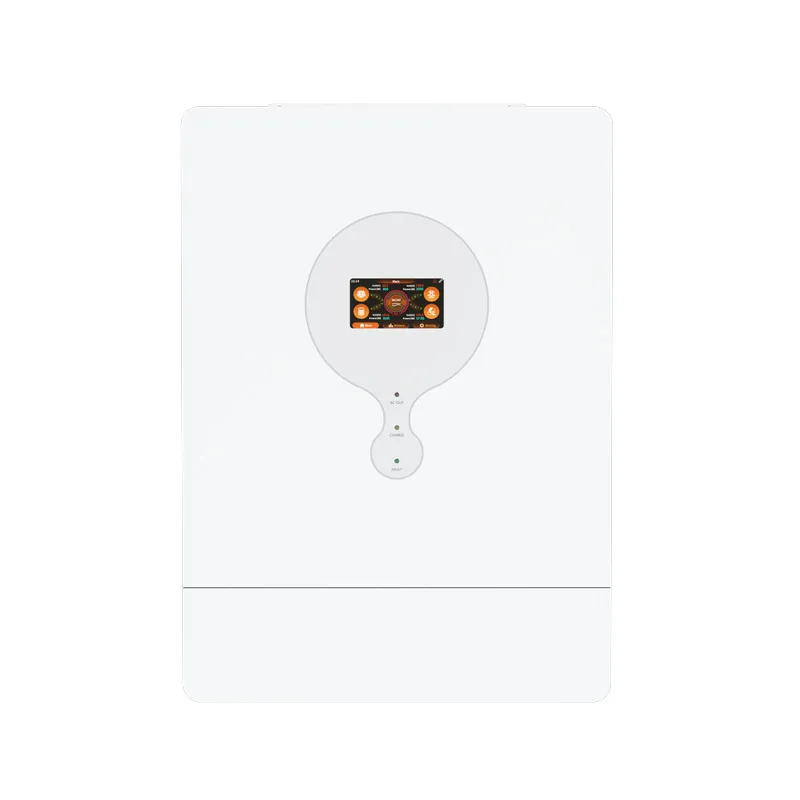

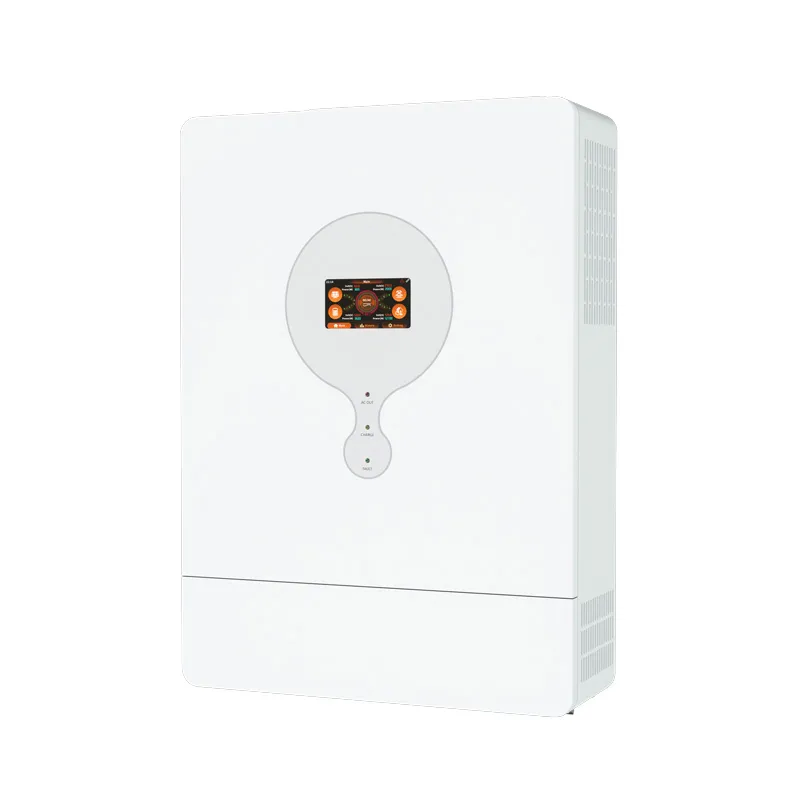

PTDPO-IP 10kW Off Grid Hybrid Inverter(Split)
PTDPO Off-Grid Hybrid Inverter (Split Type)

PTDPO-IP 10kW Off Grid Hybrid Inverter(Split)

Lithium Communication
PV + Grid Charging
8-Level Protection
Pure Sine Wave Output

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The EDPO-IP Split-Phase Off-Grid Hybrid Inverter integrates solar charging, grid charging and discharging, UPS bypass, and battery inversion into one intelligent energy management system.


Designed for the Americas, it supports split-phase 120V/240V output, making it ideal for residential and light commercial applications requiring dual-voltage power supply.


The inverter intelligently prioritizes power sources, supports communication with home Lithium Battery systems, and allows parallel operation to expand total output capacity, ensuring flexible scalability for various energy demands.


It is widely suitable for homes, RV systems, agricultural installations, and industrial applications across North and South America.


Product features

1.Advanced High-Frequency Technology
Delivers stable and efficient Pure Sine Wave AC output.

2. Automatic Lithium Battery Activation
Seamlessly activates and supports LiFePO4 battery systems.

3.Three Selectable Output Modes
Solar Mode | Inverter Mode | Mains Bypass Mode

4.Four Intelligent Charging Modes
Solar Only | Grid Only | Solar Priority | Hybrid Charging

5.High-Efficiency MPPT Controller
Advanced MPPT technology with up to 99.9% tracking efficiency for maximum solar energy utilization.


Parameters

ModelPTDPO-IP-10kW Split
AC/Generator input
Rated input voltage120Vac(L1/N, L2/N)/240Vac(L1/L2)
Voltage range(85Vac~140Vac)±2%
Frequency50Hz/60Hz (Auto detection)
Inverted output
Rated powerSplit phase 10000W; single phase 7200W
(limited by the wiring terminals)
Output voltage120Vac(L1/N, L2/N)/240Vac(L1/L2)
WaveformPure Sine Wave
Switching time
(adjustable)		10ms (typical)
Peak powerSplit phase 15000W; Single phase 15000W
Battery
Battery typeLithium ion batteries/lead-acid batteries
Rated battery voltage51.2V (Minimum starting voltage 44V)
Battery voltage range40~58.6Vdc
PV input
PV charging methodMPPT
PV maximum input power5500W+5500W
Maximum PV Input Current22A+22A
MPPT tracking range90-450VDC
Maximum PV charging current200A
Maximum AC charging current120A
Maximum total charging current200A
Basic parameters

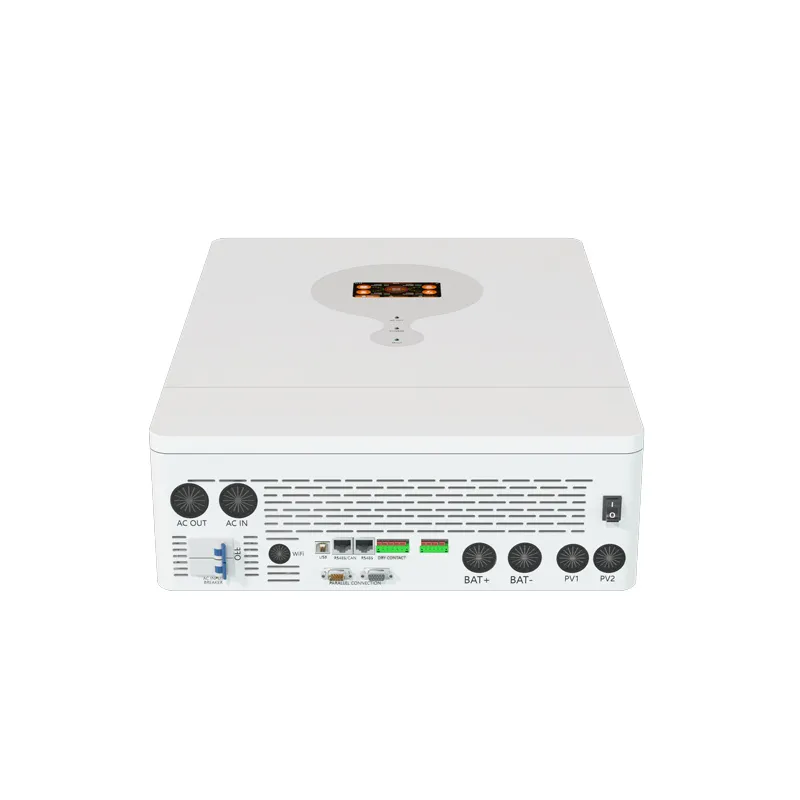

Communication interfaceUSB/RS485 (optional WiFi)/dry connector
Parallel interfaceMaximum of 6 parallel machines (optional)
Product size (mm)620*450*132
Package size (mm)768*564*234
NW. (kg)24.3
GW. (kg)27.45
