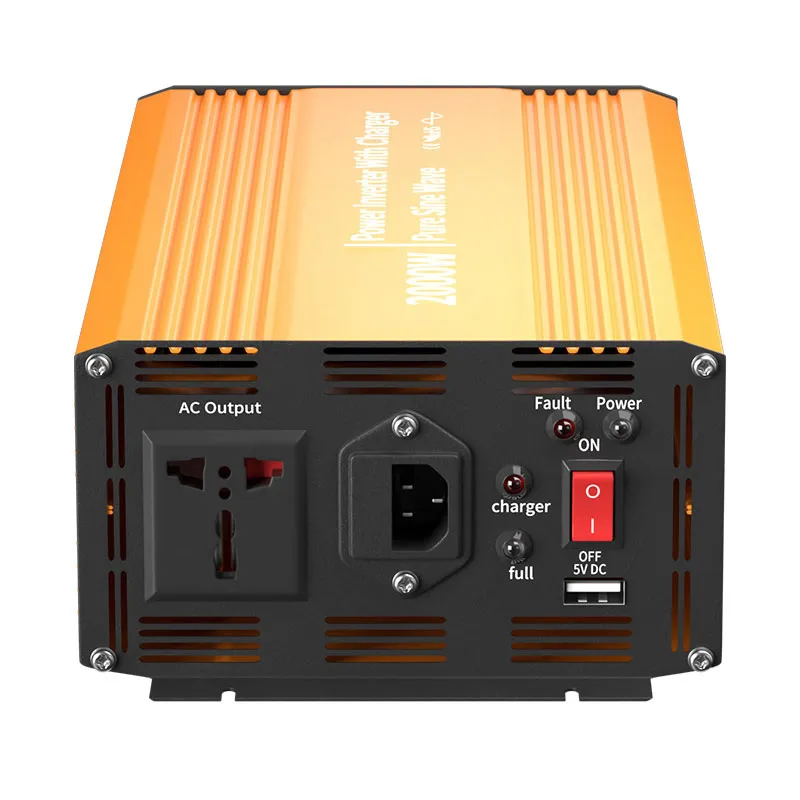

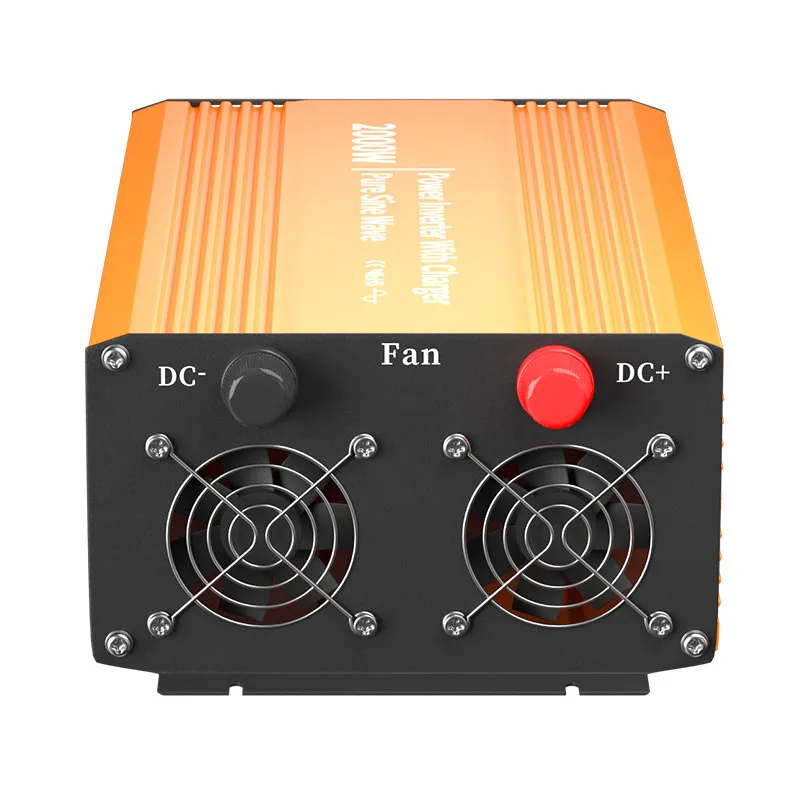

PTGPC-2000W Series Pure Sine Wave Inverter With Charger
PTGPC Series Pure Sine Wave lnverter With Charger

PTGPC-2000W Series Pure Sine Wave Inverter With Charger

Remote Control Function
Lithium Battery Compatible
Comprehensive 8-Level Protection System
Pure Sine Wave Output

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTGPC Series Pure Sine Wave Inverter Charger integrates inverter, mains charging, and UPS functions into one compact unit, delivering stable, uninterrupted power supply for critical loads.


It prioritizes grid power to supply loads and charge batteries simultaneously. In the event of a grid outage, the system automatically switches to inverter mode, ensuring continuous operation. With fully isolated input and output circuit design, it provides enhanced system safety, high reliability, and superior power quality, outperforming standard mains electricity.


Product Features

Mains Power Priority Supply

Integrated Charger & UPS Function

Optional LCD Remote Control Panel

Multiple AC Socket Options

Pure Sine Wave Output

Lithium Battery Activation Support


Parameters

ModelPTGPC-2000
Rated power2000W
Peak power4000W
Input voltage12/24/48VDC
Output voltage110/220VAC±5%
USB port5V2A
Frequency50Hz ± 3 or 60Hz ± 3
Output waveformPure Sine Wave
Soft startyes
Charging current12V/10A or 24V/10A
Power supply priorityPriority for AC
Switching time＜10 ms
DC input range12V(10V-15.5V); 24V(20V-31V); 48V(40V-61V)
Input undervoltage alarm12V(10.5V±0.5V); 24V(21V±0.5V); 48V(42V±1V)
Input undervoltage protection12V(10V±0.5V); 24V(20V±0.5V); 48V(40V±1V)
Input undervoltage recovery12V(13V±0.5V); 24V(24V±0.5V); 48V(49V±1V)
Input Overvoltage Protection12V(16V±0.5V); 24V(31V±0.5V); 48V(51V±1V)
Input overvoltage recovery12V(14.8V±0.5V); 24V(29V±0.5V); 48V(59V±1V)
Refrigeration methodIntelligent fan
Protection functionUndervoltage protection, overvoltage protection, overload protection, over temperature protection, short circuit protection, reverse connection protection (fuse)
Working temperature-10°C ~ 50°C
Product size (cm)43*17*10.2
Package size (cm)53*47*36.5/4PCS
NW./PCS (kg)5.25
GW./Ctn (kg)24.2
Packaging methodCarton
Warranty1Year
