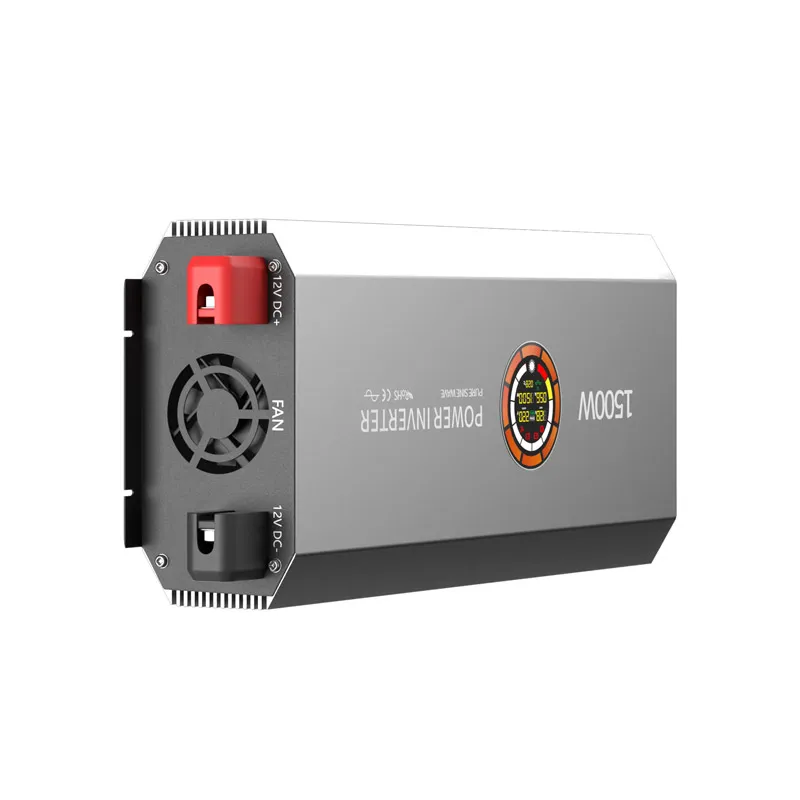

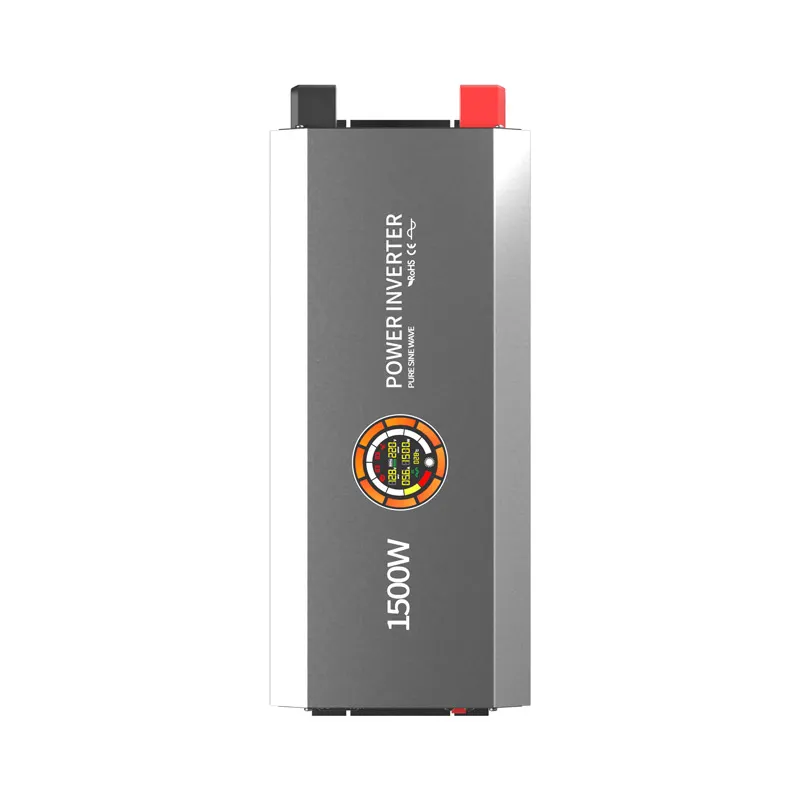

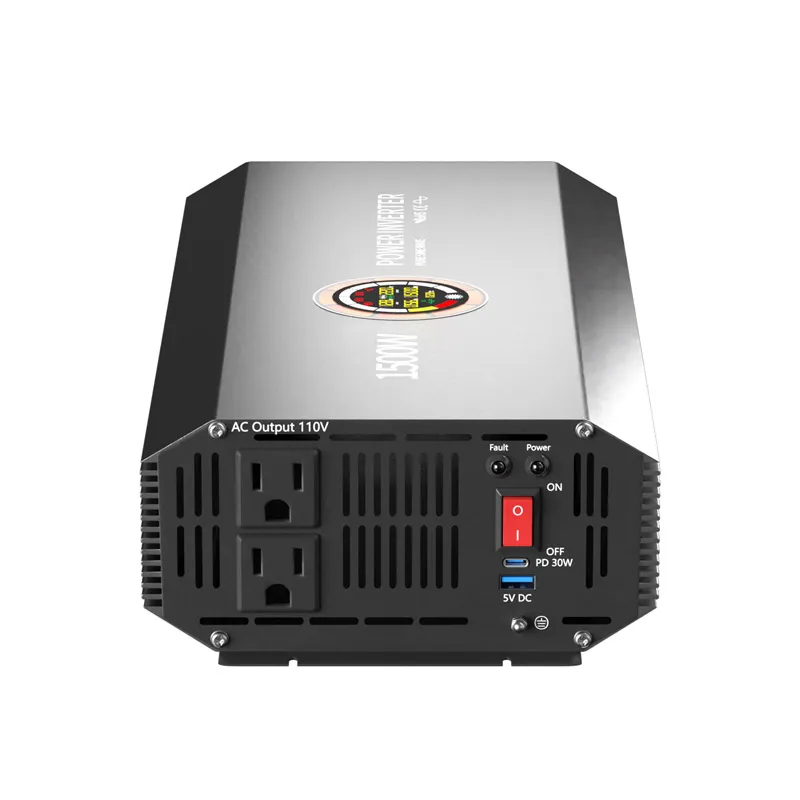

PTGPF 1500W Pure Sine Wave Inverter
PTGPF Pure Sine Wave Inverter

PTGPF 1500W Pure Sine Wave Inverter

Compact Design
8-8-Level Protection
Pure Sine Wave Output

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTGPF High-Frequency Pure Sine Wave Inverter is developed with advanced proprietary software to deliver high-quality pure sine wave AC output, providing power performance superior to standard mains electricity. It is ideal for power tools, inductive loads, and sensitive electronic devices.

With fully isolated input and output circuit design, the inverter ensures enhanced system safety, stable operation, and reliable performance, making it suitable for a wide range of industrial and commercial applications.


Product  Features

Pure Sine Wave Output

Fully Isolated Input & Output

Full Power Continuous Operation

Soft Start Technology

Compact & Lightweight Design

8-Level Intelligent Protection System


Application Areas

Energy Storage & Power Management Systems

Emergency & Backup Power Solutions

Telecommunications & Fire Protection Systems


Parameters

ModelPTGPF-1500
Rated power1500W
Peak power3000W
Input voltage12/24/48VDC
Output voltage110/220VAC±5%
USB port5V2A
Frequency50Hz ± 3 or 60Hz ± 3
Output waveformPure Sine Wave
Soft startyes
EfficiencyMaximum 94%
DC input range12V(10V-15.5V); 24V(20V-31V); 48V(40V-61V)
Input undervoltage alarm12V(10.5V±0.5V); 24V(21V±0.5V); 48V(42V±1V)
Input undervoltage protection12V(10V±0.5V); 24V(20V±0.5V); 48V(40V±1V)
Input undervoltage recovery12V(13V±0.5V); 24V(24V±0.5V); 48V(49V±1V)
Input Overvoltage Protection12V(16V±0.5V); 24V(31V±0.5V); 48V(51V±1V)
Input overvoltage recovery12V(14.8V±0.5V); 24V(29V±0.5V); 48V(59V±1V)
Refrigeration methodIntelligent fan
Protection functionUndervoltage protection, overvoltage protection, overload protection, over temperature protection, short circuit protection, reverse connection protection (fuse)
Working temperature-10°C ~ 50°C
Product size (cm)32.45*14.66*8.15
Package size (cm)47.5*42*40.5/8PCS
NW./PCS (kg)2.3
GW./Ctn (kg)18.4
Packaging methodCarton
Warranty1Year
