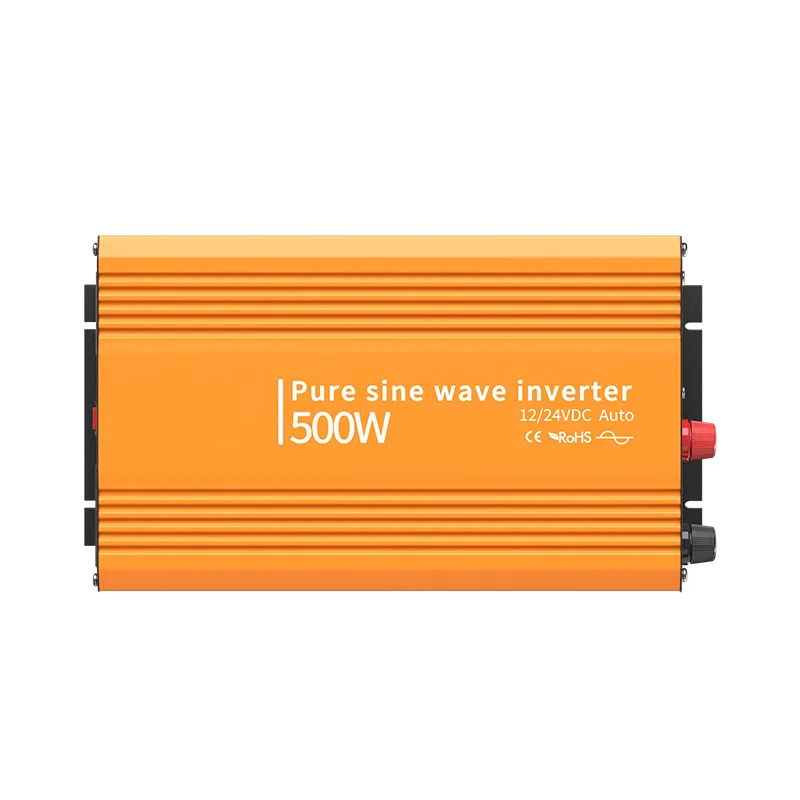

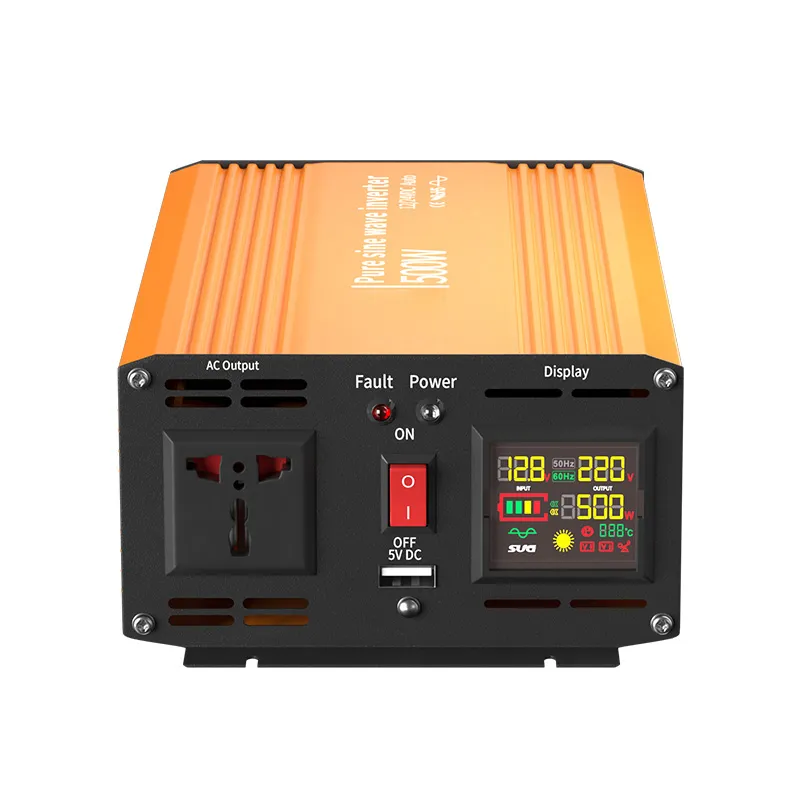

PTGPI 500W Auto-Sensing 12V 24V DC Power Inverter
PTGPI 12&24VDC Double Voltage Power Inverter

PTGPI 500W Auto-Sensing 12V 24V DC Power Inverter

Double voltage inverter Can auto rec0gnize 12V/24VDC Input voltage and transfer to220V/110VAC

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

Wide Power Range: 500W – 1000W

Pure Sine Wave DC-AC Output

Dual DC Input: 12V / 24V Auto Recognition

Multiple AC Output Voltage Options：100V / 110V / 115V / 120V / 220V / 230V AC

Global Socket Options：EU / US / Japan / UK / Australia / Universal sockets available.

High-Efficiency Components：IGBT, and MOSFET

International Certifications： CE, FCC, RoHS, PSE, and ETL standards.

2-Year Warranty & OEM / ODM Support


Parameters

ModelPTGPI-500A-122PTGPI-500A-242
Rated Power500W
Surge Power1000W(few seconds)
Input Voltage12VDC24VDC
24VDC
Output Voltage220VAC±5%
USB Port5V 2.4A
Frequency50Hz±3
Output WaveformPure Sine Wave
Soft StartYES
AC RegulationTHD＜3%(Linear Load)
Output Efficiency92% MAX
DC Voltage Range10-15.5V20-31V
Low Voltage Alarm10.5±0.5V21±0.5V
Low Voltage Shut Down10±0.5V20±0.5V
Low Voltage Recovery13±0.5V24±0.5V
Over Voltage Shut Down15.5±0.5V31±0.5V
Over Voltage Recovery14.8V±0.5V29V±0.5V
Cooling WayIntelligent Cooling Fan
ProtectionBattery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature-10℃ - +50℃
Net Dimension240*150*80mm (L×W×H)
Inner Box Dimension270*150*145mm (L×W×H)
Meas./Ctn76*45*28cm / 10pcs
N.W./Unit1.92kg (2.3kg With Inner Box)
G.W./Ctn24.4KGS
PackingCARTON
Warranty2 Years
