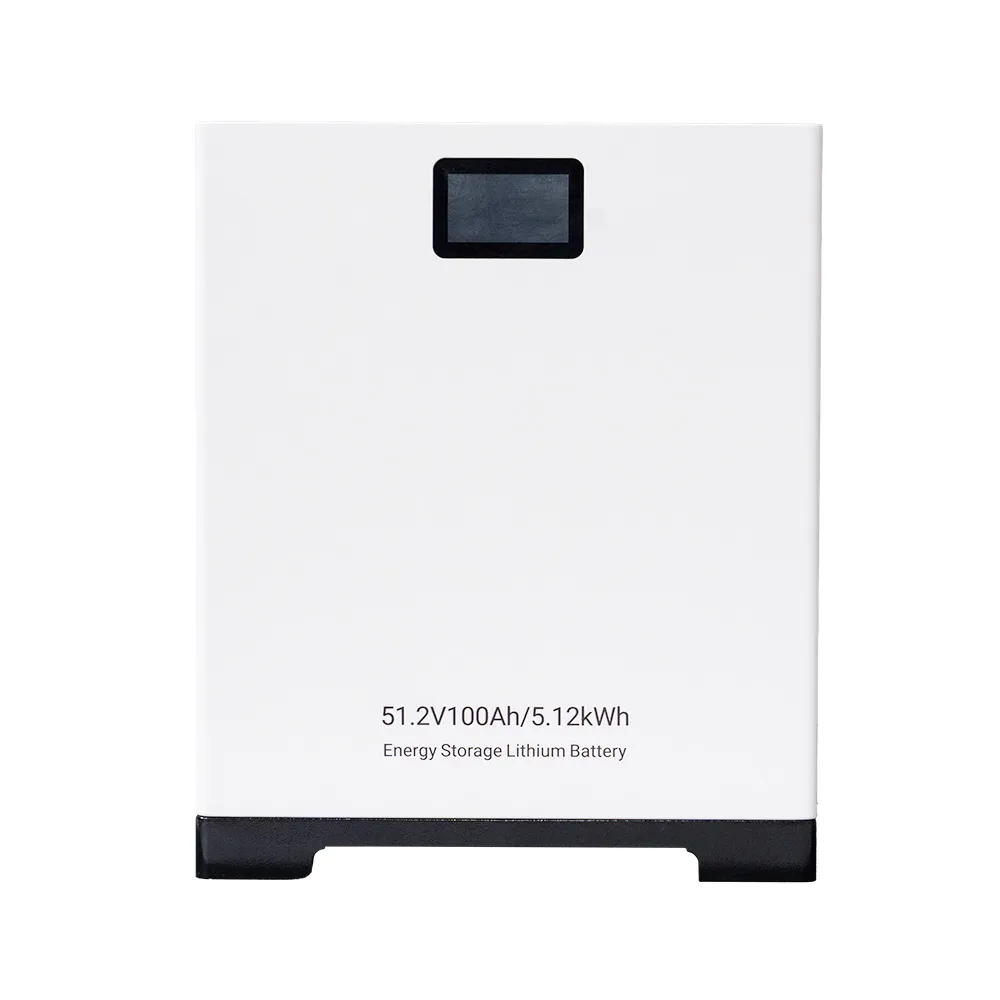

PTPV-51.2V 100Ah Vertical Energy Storage Lithium Battery
PTPV Vertical LFP Energy Storage Battery

PTPV-51.2V 100Ah Vertical Energy Storage Lithium Battery

PTPV​ series household energy storage use high-quality square aluminum-cased lithium iron phosphate cells and are equippedwith intelligent BMS. long cycle life, high safety performance, beautiful appearance, free combination, and easy installationThe battery pack is equipped with a touch LCD displayto visualize operating data. Compatile with most brands of hybrid ivertersand able to communicate with them. It is widely used in distributed photovoltaic systems and home energy storage systems.Provide efficient and clean energy for household, industrial, commercial, agricultural and other electric...

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

PTPV series household energy storage use high-quality square aluminum-cased lithium iron phosphate cells and are equippedwith intelligent BMS. long cycle life, high safety performance, beautiful appearance, free combination, and easy installationThe Battery Pack is equipped with a touch LCD displayto visualize operating data. Compatile with most brands of hybrid ivertersand able to communicate with them. It is widely used in distributed photovoltaic systems and home Energy Storage Systems.Provide efficient and clean energy for household, industrial, commercial, agricultural and other electrical equipment





Product Features

·  TOP brand battery cells,Quality guaranteed

·  The PACK+ cabinet features dual fire protection,Ensuring a safer system

·  Compatible with communication of most brand inverters

·  Touch screen design, convenient interaction

·  Support customization of Bluetooth and WiFi communication

·  Support OEM/ODM

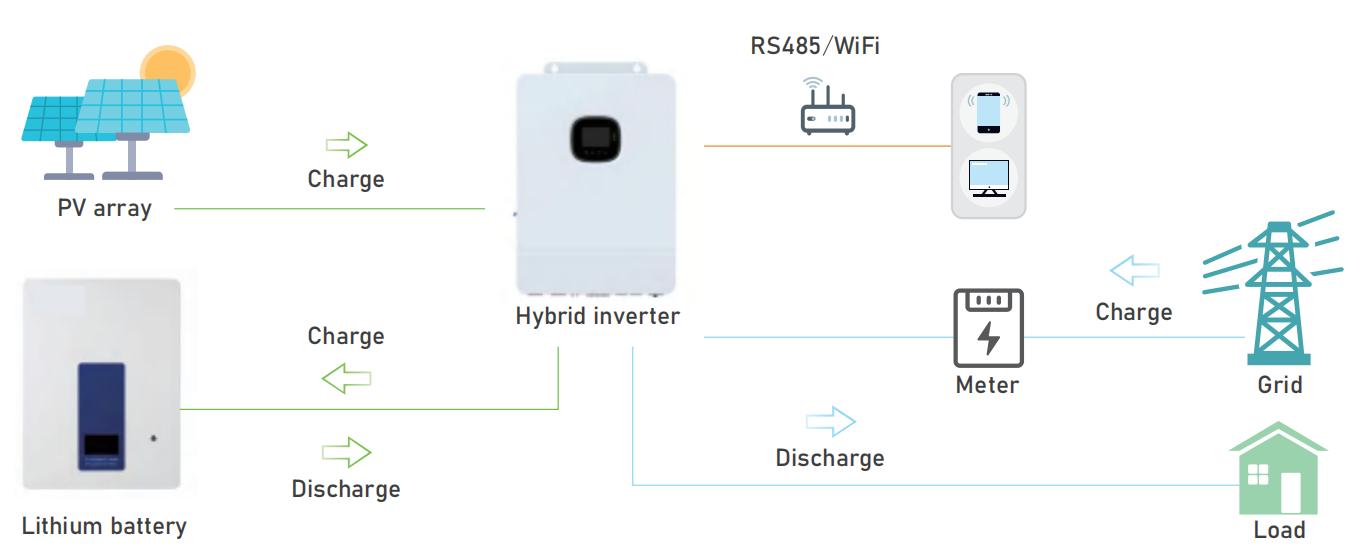

Operation diagram of household photovoltaic energy storage system



Parameters

ModelPTPV-51.2/100PTPV-51.2/200PTPV-48/314PTPV-51.2/314
System specification51.2V 100Ah51.2V 200Ah48V 314Ah51.2V 314Ah
Battery combinationParallel 3-layer stackableUp to 10 pcs in parallelsUp to 10 pcs in parallelsUp to 10 pcs in parallels
Battery Pack capacity5.12kWh10.24kWh15.07kWh16.07kWh
Standard discharge current50A100A140A140A
MAX. discharge current100A105A140A140A
Working voltage range43.2–57.6VDC43.2–57.6VDC40.5–54VDC43.2–57.6VDC
Standard voltage51.2VDC51.2VDC48VDC51.2VDC
MAX. charging current50A50A140A140A
MAX. charging voltage57.6V57.6V54VDC57.6V
Discharge depth and life>6000 times (0.5C@25℃) Energy retention rate ≥80%
Working humidity65±20%RH
Operating temperature0~+40℃
Working altitude≤2500m
FirefightingAerosol PACK 12g
Cooling methodNatural cooling
Installation methodVertical installation
IP ratingIP20
Warranty5-10Years
CommunicationDefault: RS485/RS232/CAN (Optional WiFi/4G/Bluetooth)
CertificationCE ROHS FCC UN38.3 MSDS ISO9001
Product size370*600*160mm500*988*176mm895*520*280mm
Package size430*660*220mm560*1050*230mm980*600*460mm
Net weight45kg92kg119kg125kg
Gross weight51kg105kg137kg143kg

*Customized different brands of cell and different voltage, capacity, dimensions/color, OEM/ODM services
