PTPV-51.2V 200Ah/10.24kWh Vertical EnergyStorage System
PTPV Vertical Energy Storage System

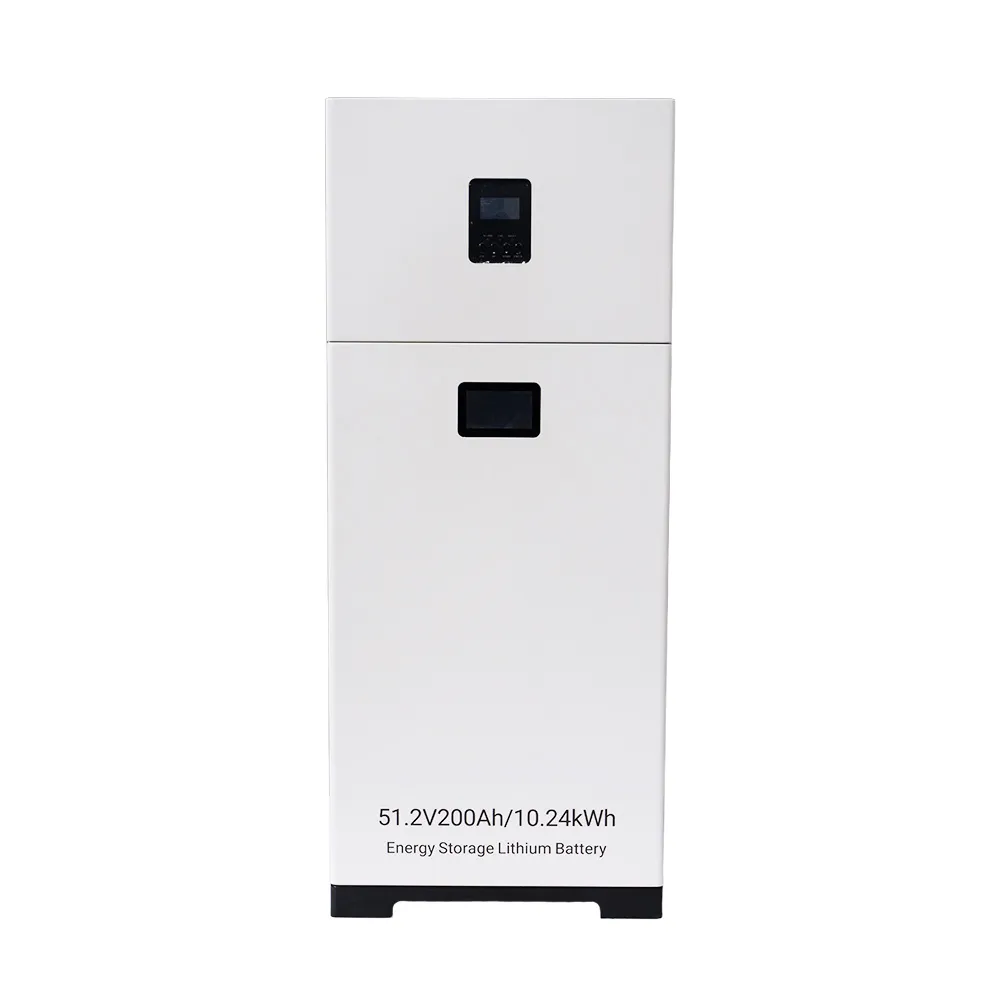

PTPV-51.2V 200Ah/10.24kWh Vertical EnergyStorage System

PTPV series is a high-performance energy sto rage system independently developed by us. It uses high-quality lithium ironphosphate batteries and is equipped with an intelligent BMS. It has long cycle life, high safety,and good sealing; High-frequencyof- grid hybrid inverter, built-in MPPT controller, can provide efficlent and reliable energy solutions for solar off-grid powergeneration systems, household solar storage systems, and commercial energy storage systems.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

PTPV series is a high-performance energy sto rage system independently developed by us. It uses high-quality lithium ironphosphate batteries and is equipped with an intelligent BMS. It has long cycle life, high safety,and good sealing; High-frequencyof- grid hybrid inverter, built-in MPPT controller, can provide efficlent and reliable energy solutions for solar off-grid powergeneration systems, household solar storage systems, and commercial Energy Storage Systems.



The system is equipped with a self-developed APP, supports IOS/Android mobile phones, remotely controls the charging anddischarging of the Battery Pack monitors the system operating data in real time, and quickly enters the troubleshooting workwhen the system fails, so as to restore the effective power supply more efficiently



Product Features

· Li-FePO₄ (Lithium Iron Phosphate) Battery

· 3-8KW Output Power

· APP Remote Control

· Customized High/Low Voltage

· Customized Capacity


Parameters

System Capacity5.12kWh/5kW10.24kWh/5kW16kWh/8kW
Standard discharge current50A50A50A
Max. discharge current100A100A100A
Working DC voltage range43.2-57.6VDC43.2-57.6VDC43.2-57.6VDC
Standard Voltage51.2VDC51.2VDC51.2VDC
Max. charging current50A50A50A
Max. charging voltage57.6V57.6V57.6V
Rated solar input voltage360VDC
MPPT tracking voltage range120V-450V
Max input voltage (VOC) at lowest temperature500V
Max input power5500W5500W+5500W
Number of MPPT ways1 way2 ways
DC input voltage range42-60VDC
Rated grid power input voltage220VAC/230VAC/240VAC
Grid power input voltage range170VAC-280VAC (UPS mode) / 120VAC-280VAC (Inverter mode)
Grid input frequency range45Hz-55Hz (50Hz); 55Hz-65Hz (60Hz)
Inverter output efficiency94%(MAX)
Inverter output voltage220VAC±2%/230VAC±2%/240VAC±2%(Inverter mode)
Inverter output frequency50Hz±0.5 or 60Hz±0.5(Inverter mode)
Inverter output waveformPure Sine Wave
Grid output efficiency>99%
Max mains charging current60A
Max solar charging current100A
Max charging current (Grid+solar)100A
Optional modeGrid priority/Solar priority/Battery priority
