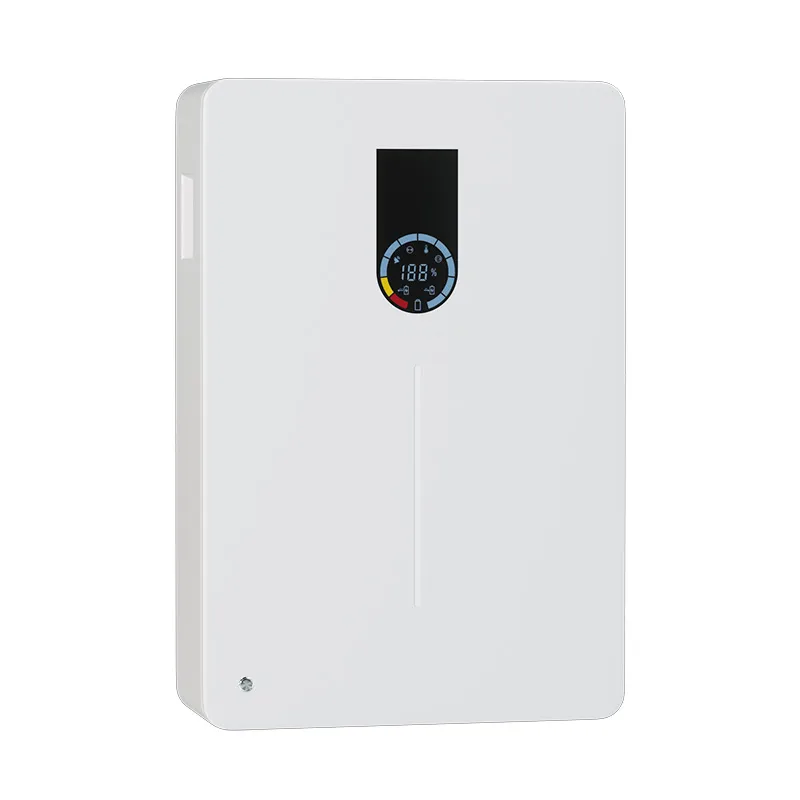

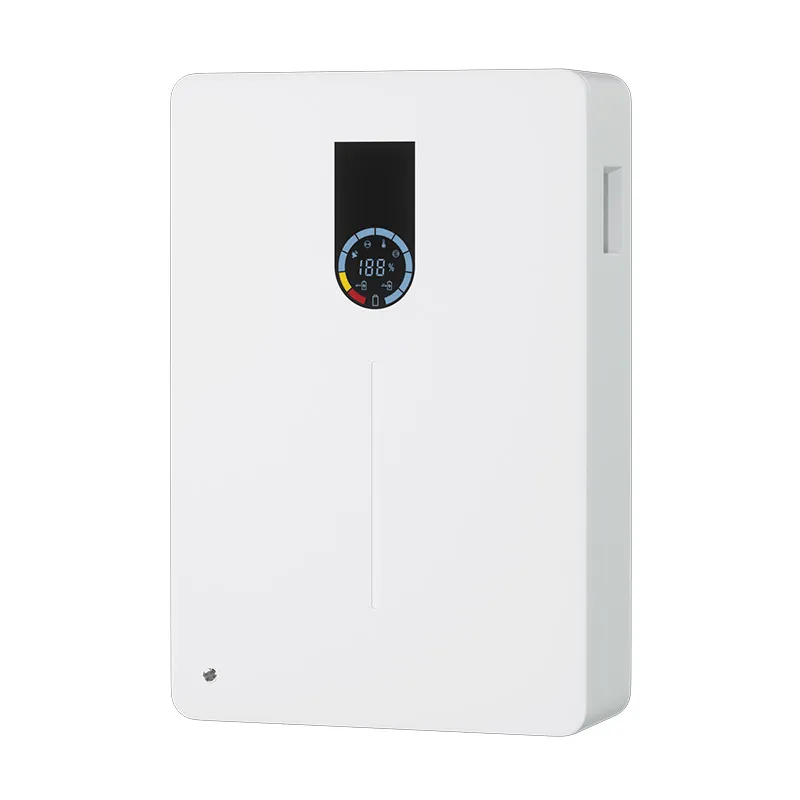

PTPW Series 48V 51.2V 100Ah Power Wall LiFePO4 Battery
PTPW Power Wall Energy Storage Lithium Battery

PTPW Series 48V 51.2V 100Ah Power Wall LiFePO4 Battery

Voltage: 48V / 51.2V
Capacity: 100Ah / 200Ah / 300Ah
Protection: Smart BMS protection

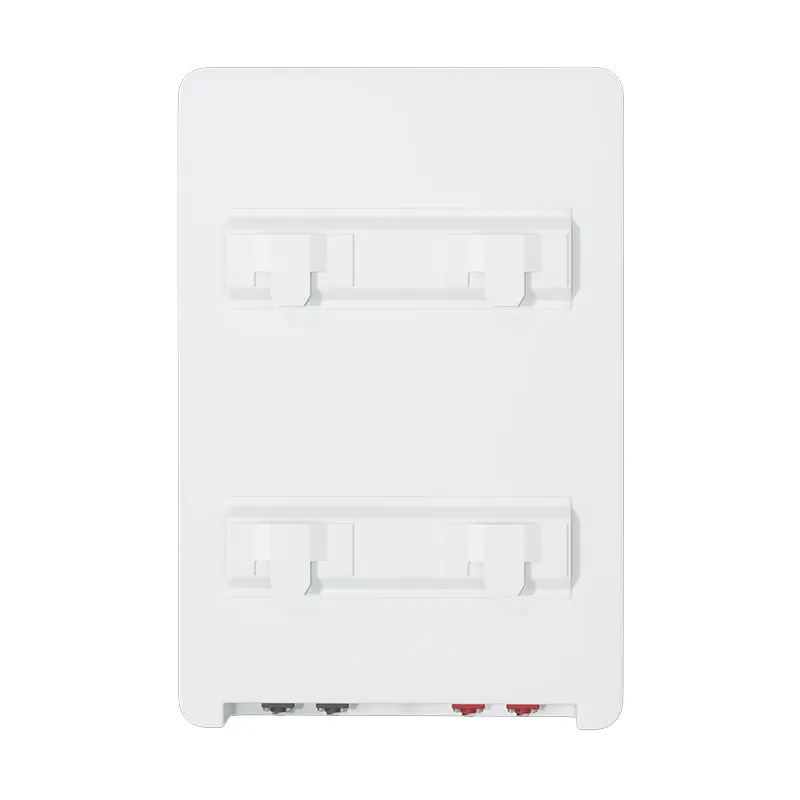

Design: Wall-mounted design
Application: Home energy storage
Communication: Intelligent communication

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTPW-A Power Wall battery adopts high-cycle LiFePO4 cells and advanced BMS protection, ensuring high safety, long lifespan, and stable operation. The wall-mounted design enables easy installation, while Eberry’s color LCD display provides clear, real-time system monitoring.



 Product features

·Grade A LiFePO4 Cells

·Parallel Expansion up to 15 Units

·Wide Inverter Compatibility

·Long Cycle Life: 6000 Cycles @ 80% DOD

·Optional Bluetooth & WiFi Monitoring

·Multiple BMS Options: 100A / 150A / 200A

·High-Definition LCD Color Display


Application Area

·Energy storage & control systems

·Emergency lighting & backup power

·UPS systems

·Telecommunications & fire protection


Parameters

ModelPTPW-48100PTPW-51.2100
Standard voltage48V51.2V
Standard capacity100Ah100Ah
Rated capacity4.8kWh5.12kWh
Working voltage40.5-54V43.2-57.6V
Standard charging current50A50A
Standard discharging current100A100A
Suggested DOD80%
Cycle life>6000 cycles
IP RatingIP21(IP65 optional)
Discharge operating temperature-20℃-60℃
Charging operating temperature0℃-45℃
Maximum parallel15PCS
CommunicationRS232/CAN/RS485 (WIFI/BT optional)
DisplayLCD color display screen
Warranty5 Years
CertificateUN38.3/MSDS/CE/ROHS/FCC
NW.(kg)47.248
GW.(kg)51.455
Product size (mm)545*460*200545*460*200
Package size (mm)625*540*300625*540*300
