PTPW-51.2V100Ah Power Wall Energy Storage Lithium Battery
PTPW Power Wall Energy Storage Lithium Battery

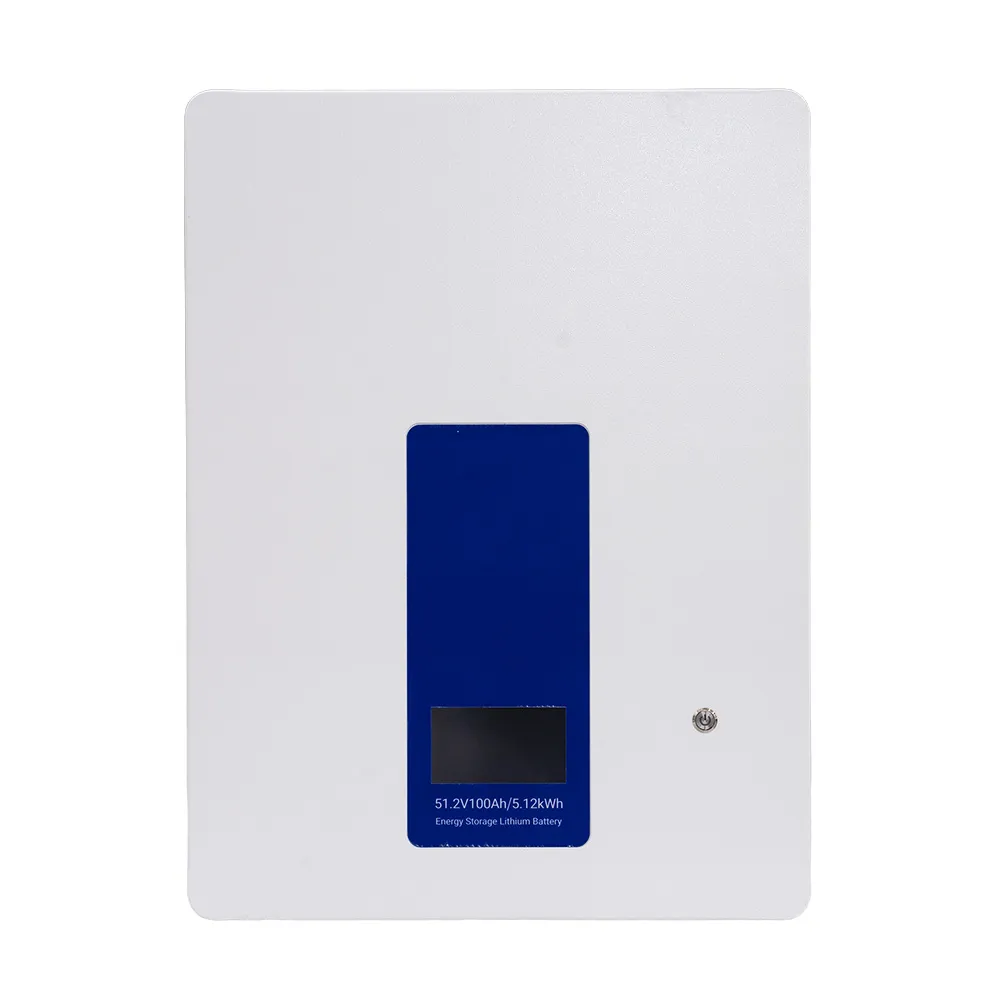

PTPW-51.2V100Ah Power Wall Energy Storage Lithium Battery

The PTPW series household energy storage system adopts high-quality square aluminum-cased lithium iron phosphate batteries and an intelligent BMS. With long cycle life, high safety and easy installation, it is compatible with most mainstream hybrid inverters. It is widely used in distributed photovoltaic projects, providing efficient and clean energy for household, industrial and agricultural loads.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTPW series household Energy Storage System adopts high-quality square aluminum-cased lithium iron phosphate batteries and an intelligent BMS. With long cycle life, high safety and easy installation, it is compatible with most mainstream hybrid inverters. It is widely used in distributed photovoltaic projects, providing efficient and clean energy for household, industrial and agricultural loads.

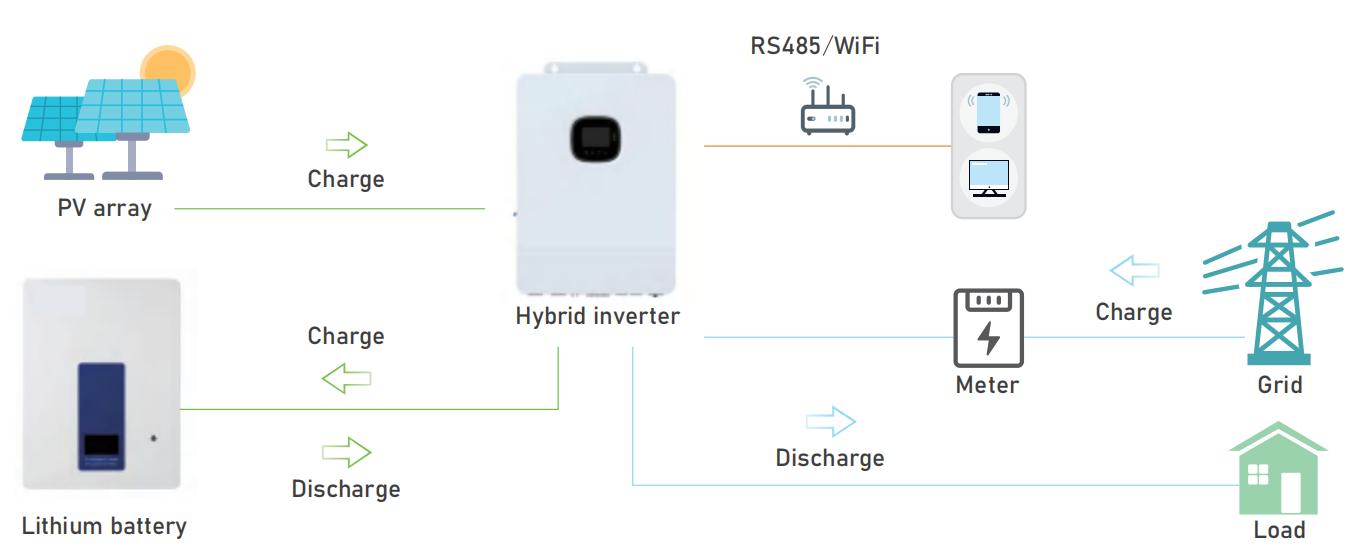

Operation diagram of household photovoltaic energy storage system


Parameters

Item25.6V100Ah51.2V50Ah48V100Ah51.2V100Ah48V200Ah51.2V200Ah
System specification25.6V100Ah51.2V50Ah48V100Ah51.2V100Ah48V200Ah51.2V200Ah
Cells combination8S1P16S1P15S1P16S1P15S1P16S1P
Battery Pack capacity2.56kWh2.56kWh4.8kWh5.12kWh9.6kWh10.24kWh
Standard discharge current50A50A50A50A100A100A
MAX. discharge current100A100A100A100A105A105A
Working voltage range20-29.2VDC43.2-57.6VDC40.5-54VDC43.2-57.6VDC40.5-54VDC43.2-57.6VDC
Standard Voltage25.6VDC51.2VDC48VDC51.2VDC48VDC51.2VDC
MAX. charging current100A50A100A100A105A105A
MAX. charging voltage29.2V57.6V54V57.6V54V57.6V
Discharge depth and life>6000 times (0.5C@25℃) Energy retention rate ≥80%
Working humidity65±20%RH
Storage temperature0~+40℃
Working altitude≤2500m
FirefightingAerosol PACK 12g
Cooling methodNatural cooling

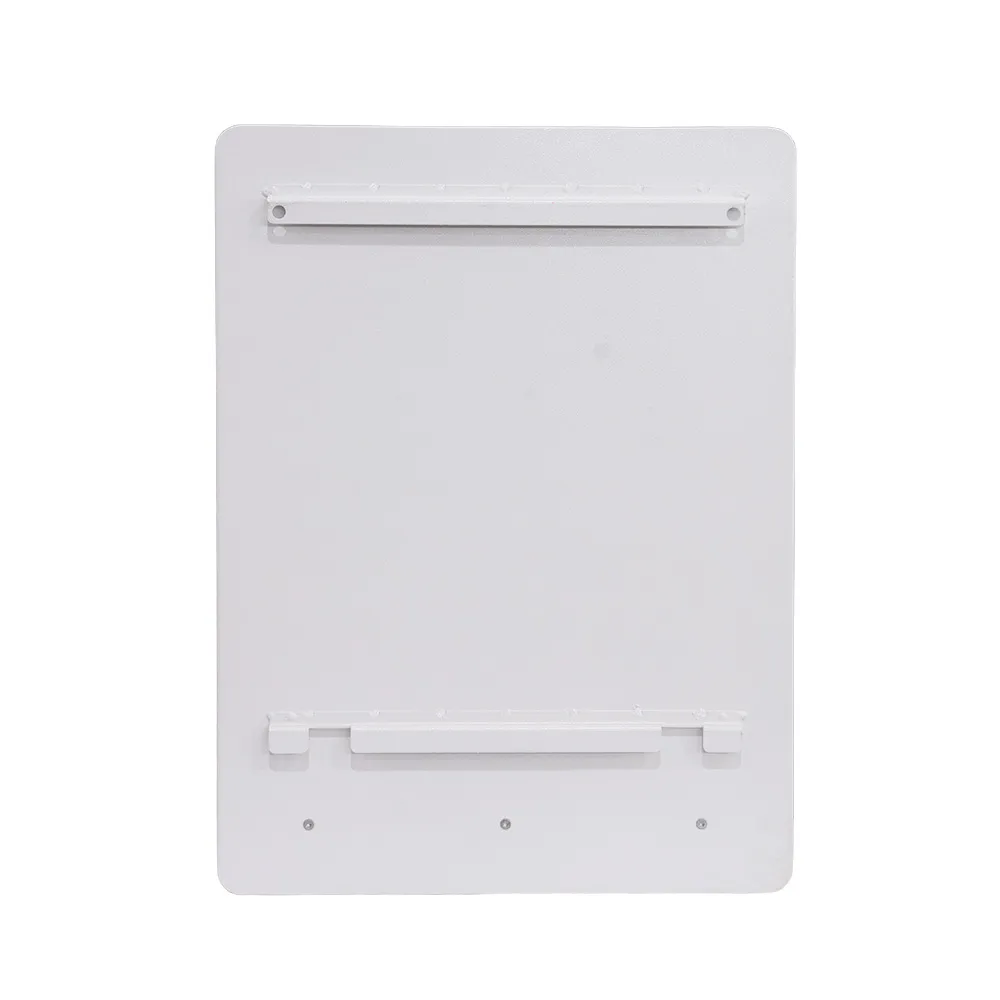

Installation methodWall-mounted installation
IP ratingIP20
Warranty5~10Years
CommunicationDefault: RS485/RS232/CAN(Optional WiFi/4G/Bluetooth)
CertificationCE ROHS FCC UN38.3 MSDS ISO9001
Product size440*460*170mm440*585*170mm540*800*170mm
Package size500*520*230mm500*630*240mm600*860*230mm
Net weight26.5kg30kg42kg46kg80kg85kg
Gross weight32kg36kg50kg54kg86kg92kg

*Customized different brands of cell and different voltage, capacity, dimensions/color, OEM/ODM services
