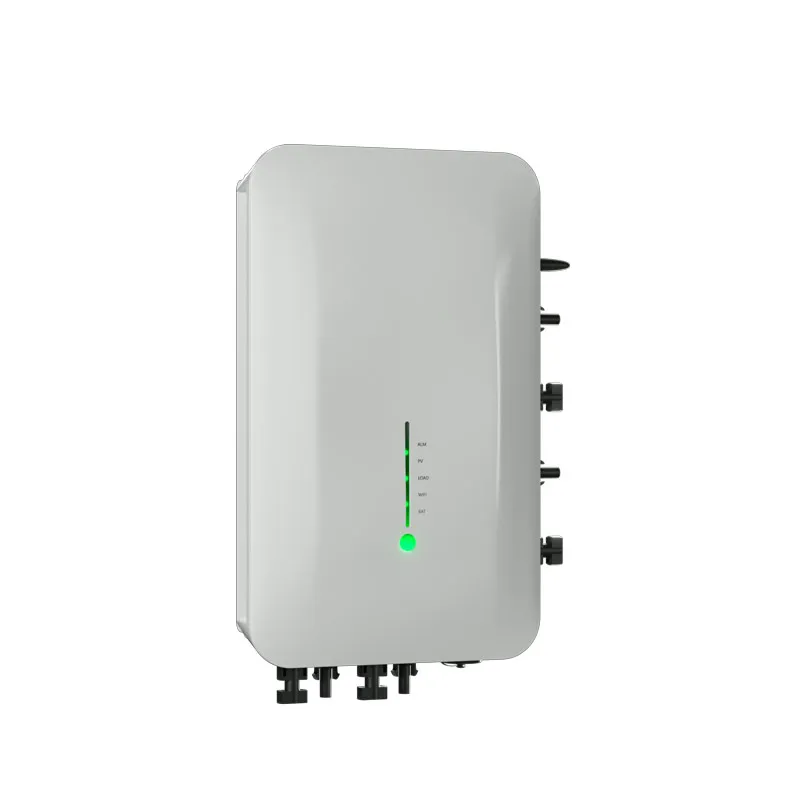

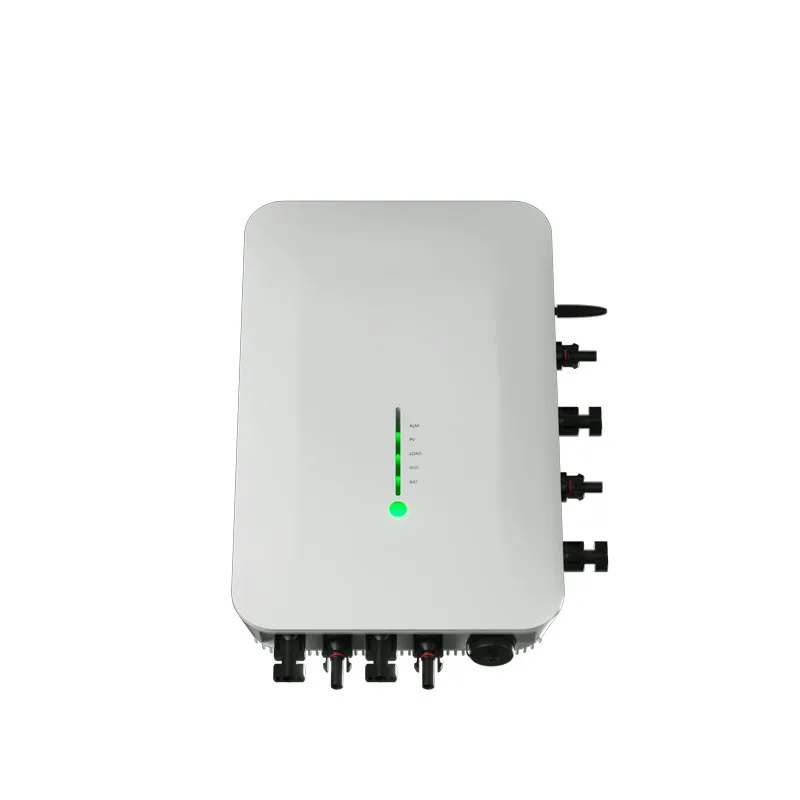

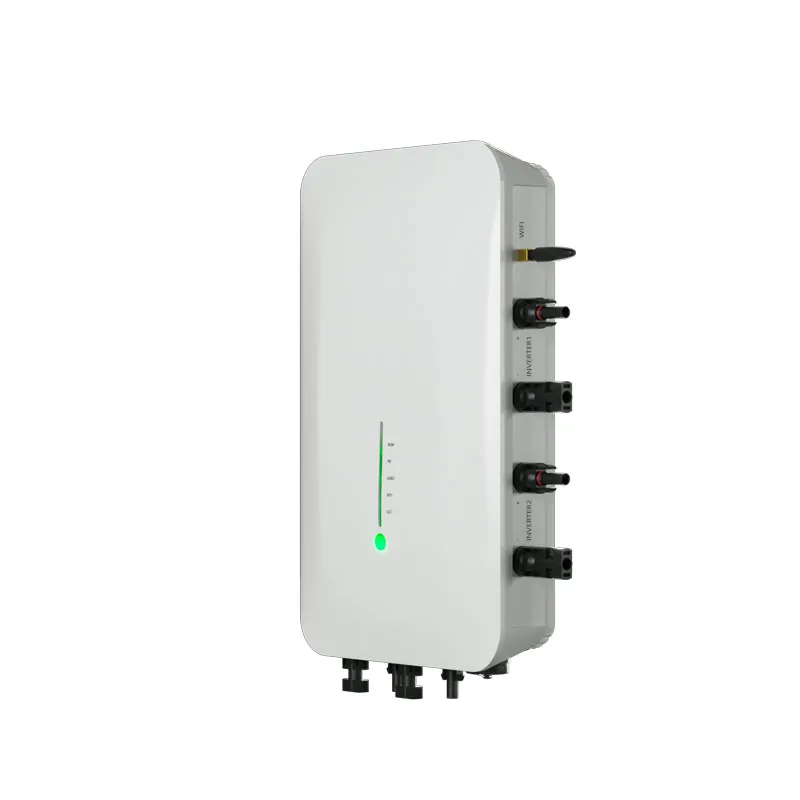

1600W Balcony Photovoltaic Energy Storage Controller
Balcony Micro Inverter With Energy Storage

1600W Balcony Photovoltaic Energy Storage Controller

BMS protection
Stacked design
Home energy storage
Intelligent communication

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The Balcony Photovoltaic Energy Storage Controller (PV HUB) is an intelligent power management system designed for balcony solar energy storage applications. It optimizes the operating status of PV modules to maximize solar power generation efficiency and serves as a central control bridge between solar panels, lithium batteries, and the power grid.


The PV HUB efficiently stores DC power generated by solar panels into batteries and delivers stable AC power to household loads through micro-inverters. This integrated design significantly improves system safety, reliability, usability, and service life, making it an ideal solution for modern residential solar Energy Storage Systems.

Parameters

PV Input Voltage Range12V-60VPeak Efficiency98%
PV Input Power800W×2 MaxMPPT Tracking Efficiency99%
Output Voltage Range18V-55VBattery Short-Circuit Protection Current66A
Output Power800W×2 MaxOperating Ambient Temperature-20°C-65°C
Battery Voltage Range40V-58.4VProtection RatingIP65
Battery Charging Power1600W MaxRS485, CAN CommunicationSupported
EMC ClassCLASS-BWi-Fi CommunicationSupported
W≈3.2kgDimensions340×213×67mm
PCBA Weight≈590gPCBA Dimensions280×160×35mm
