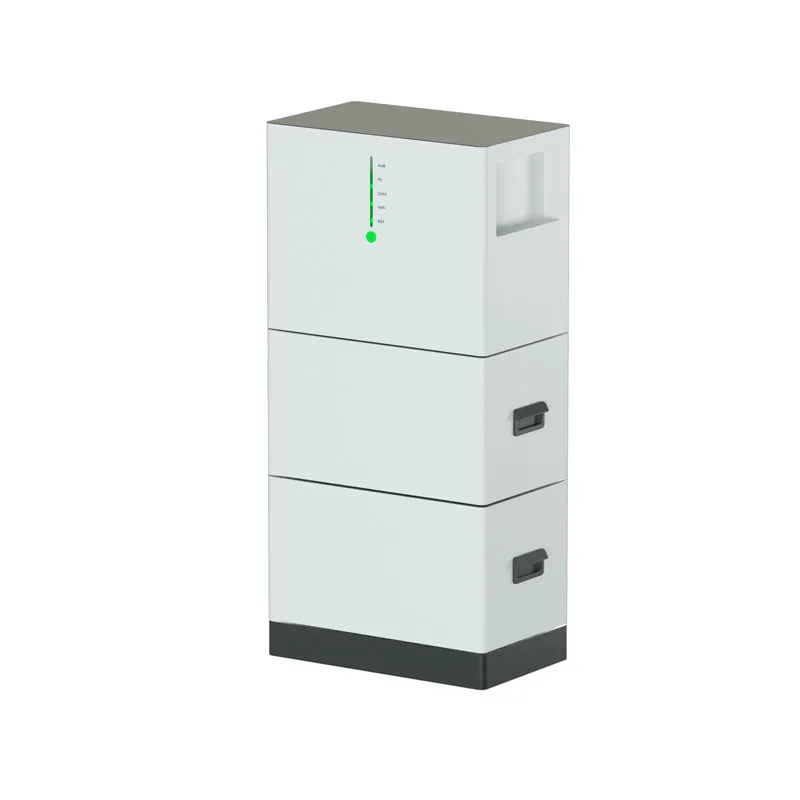

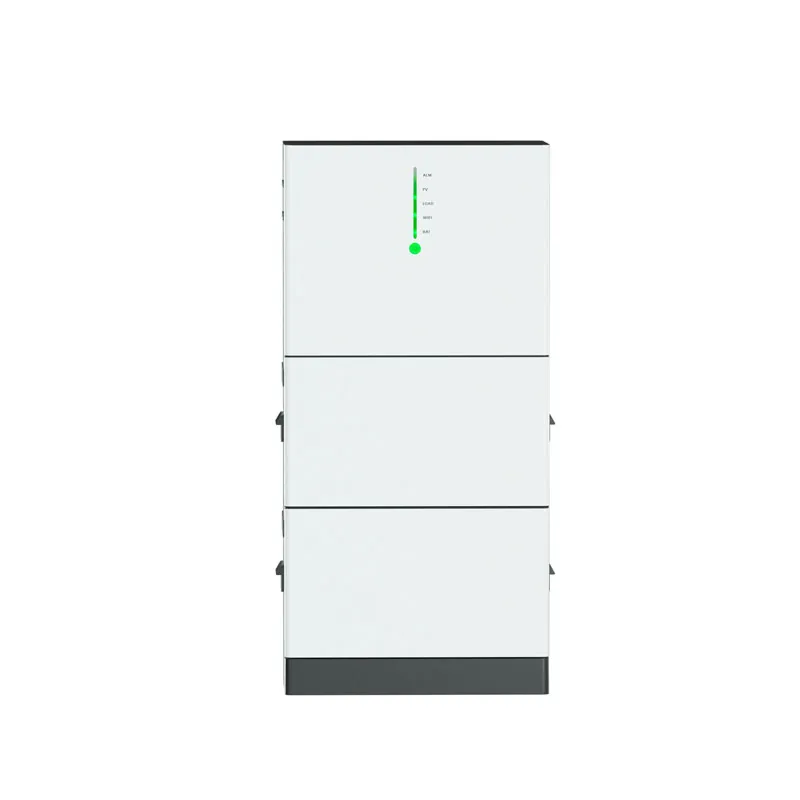

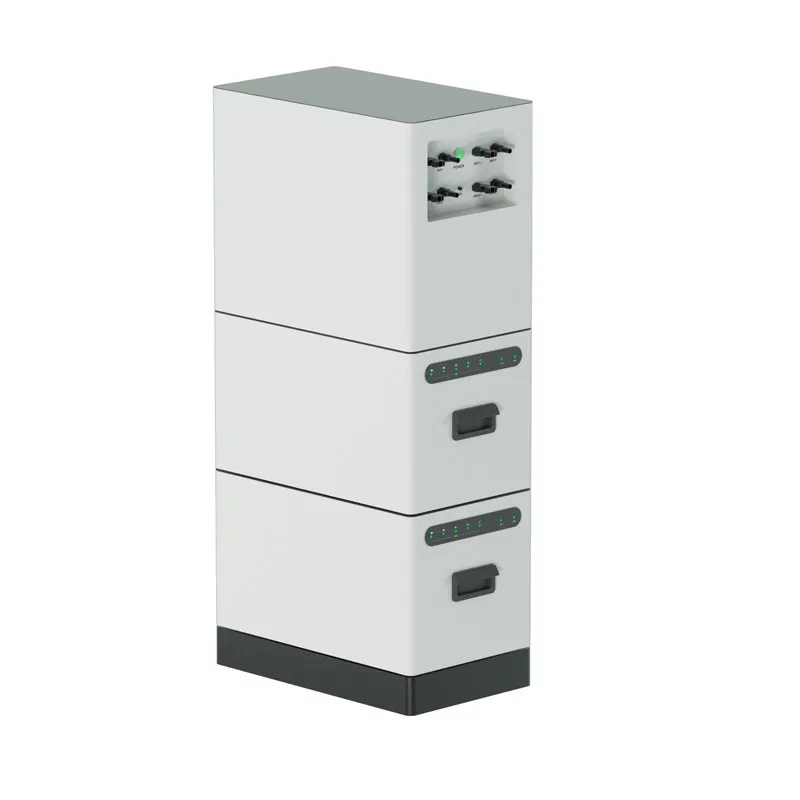

PTIPY Balcony Solar ESS – 51.2V 40Ah Integrated Energy Storage System
Balcony Micro Inverter With Energy Storage

PTIPY Balcony Solar ESS – 51.2V 40Ah Integrated Energy Storage System

BMS protection
Stacked design
Home energy storage
Intelligent communication

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTIPY All-in-One Balcony Solar Power System is a compact micro photovoltaic energy storage solution designed for residential balcony solar applications. It integrates a LiFePO4 battery system and intelligent PV control module into a single unit, forming a complete balcony Energy Storage System when paired with PV panels, micro-inverters, smart meters, and the power grid.


This system efficiently stores solar energy, supplies power to household loads, and supports grid connection, delivering high safety, easy installation, intelligent control, and long service life for clean and reliable green energy solutions.



Product Features

Grade A LiFePO4 Battery Cells
High safety, long cycle life, and stable performance.

Wi-Fi Smart Communication Control
Real-time monitoring and intelligent system management.

Parallel Connection up to 3 Units

Flexible system expansion for increased capacity.

Long Cycle Life – 6000 Cycles @ 80% DOD

Designed for long-term reliability and reduced maintenance cost.

Compact & Portable Modular Design

Easy to move, install, and freely combine.

Accurate Power Monitoring & Management

Intelligent energy measurement and optimization.



Application Areas

Balcony Solar Energy Storage Systems

Residential Backup Power & Micro-Grid Systems

Smart Home Energy Management Solutions


Parameters

Battery
Battery typeLiFePO4
Rated voltage51.2V(16S)
Battery capadity2.048kWh
Cycle life6000(25°C)
Discharge depth90%
Maximum charging current60A
DC input (PV input)
Maximum input power800Wx2 max
Mppt voltage range18V-60V
Start-up voltage12V
Operating voltage range12V-60V
Input conversion efficiency98% Max
Maximum input voltage60V
Maximum input current per channel25A
Maximum input short-circuit protection current (transient) per channel90A
Number of MPPT tracking2
MPPT tracking efficiency99%
DC output (INV output)
Maximum output power800Wx2 Max
Output conversion efficiency98% Max
Operating voltage range18V-55V
Maximum output voltage55V
Maximum output current per channel28
Maximum input short-circuit protection current (transient) per channel90A
General parameters
Product dimensionsControl module (with battery):480×230×275mm
Battery: 480×230×230mm
Packaging dimensions520mmx270mmx310mm
Net weight≈20kg
Maximum number of external parallel slave Battery Packs3 PCS
Capacity of a single slave battery pack2.048kWh
Charging operating temperature0°C-55°C
Discharging operating temperature-20°C-60°C
Protection gradeIP65
Communication modeWIFI
Heat dissipation modenatural cooling
