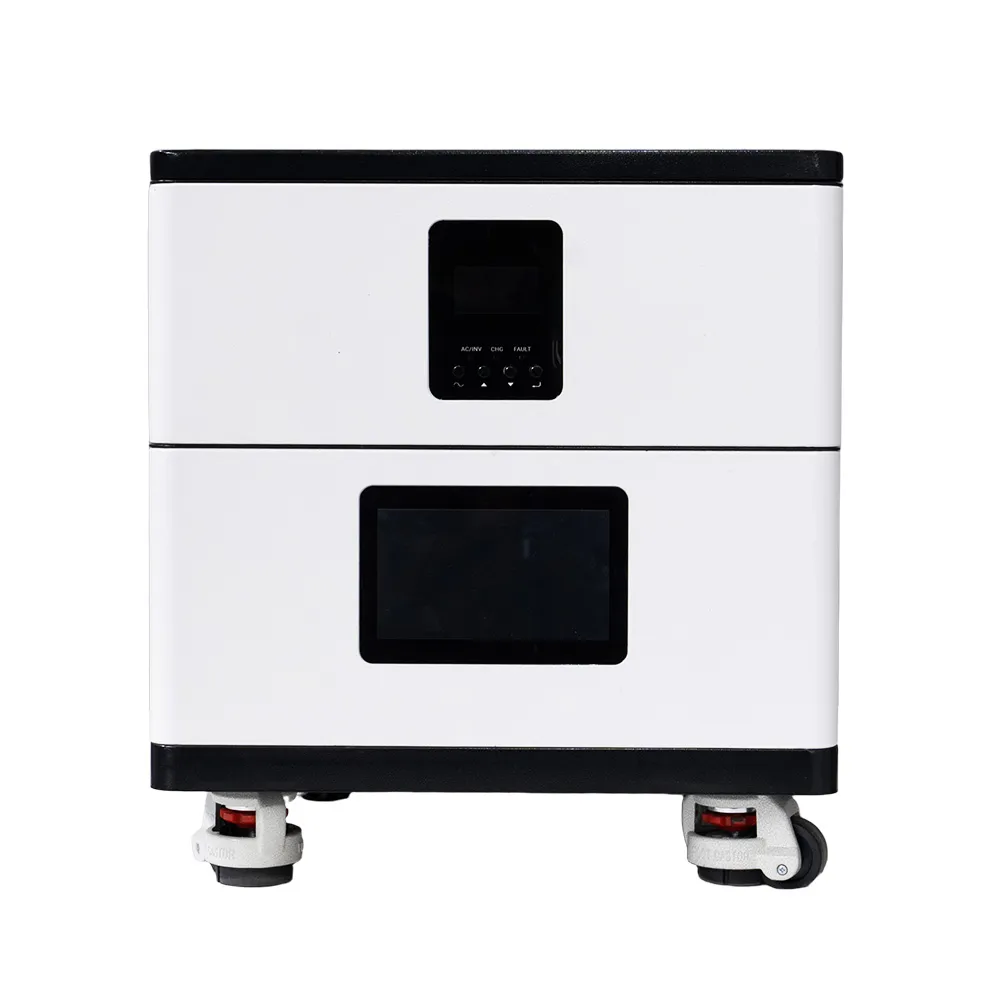

PTBM-5kW / 5.12kWh Energy storage system with large display

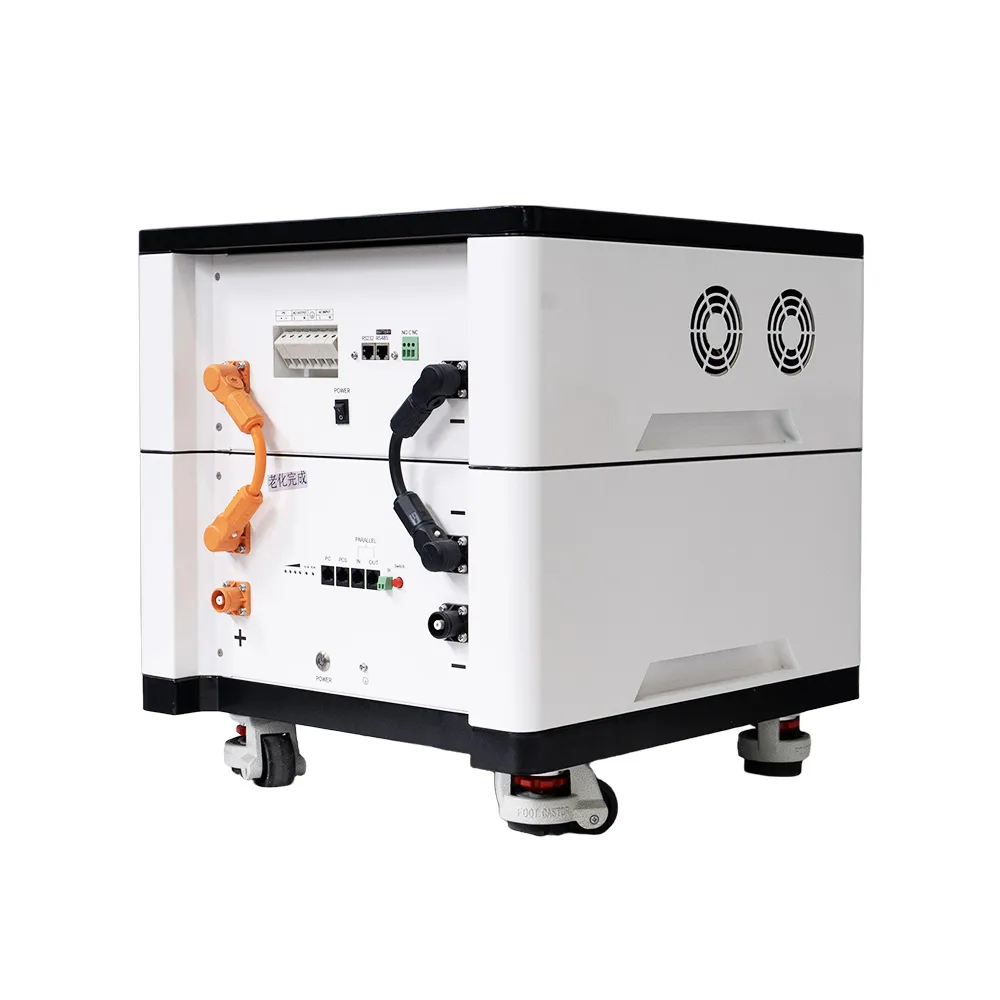

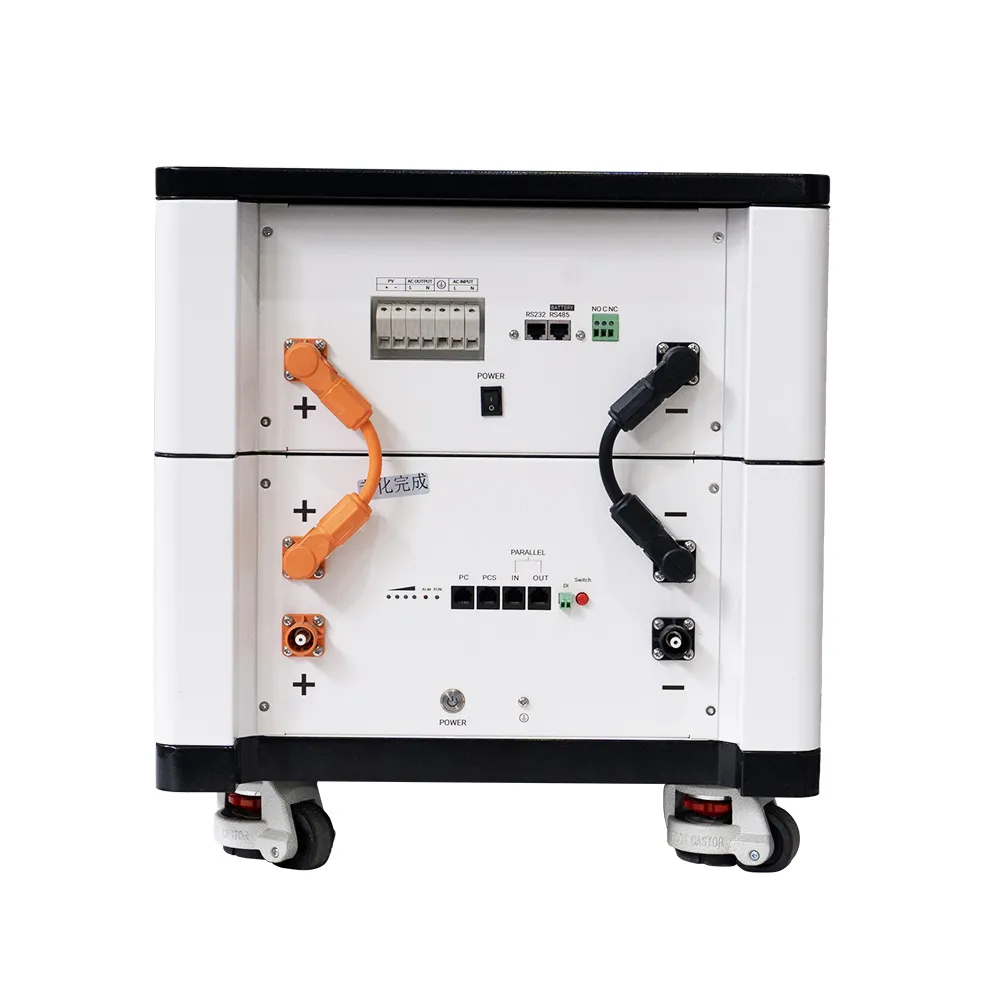

PTBM Stacked Energy Storage System

PTBM-5kW / 5.12kWh Energy storage system with large display

Independently developed, the PTBM series combines premium LiFePO₄ batteries and smart BMS technology for outstanding performance. It includes a high-frequency hybrid inverter and MPPT for efficient, reliable power. Our proprietary app offers remote management, real-time monitoring, and rapid troubleshooting to ensure efficient power restoration.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

Independently developed, the PTBM series combines premium LiFePO₄ batteries and smart BMS technology for outstanding performance. It includes a high-frequency hybrid inverter and MPPT for efficient, reliable power. Our proprietary app offers remote management, real-time monitoring, and rapid troubleshooting to ensure efficient power restoration.



Product Features

·  Premium LiFePO₄ battery for long cycle life & high safety

·  3-8kW high power output for versatile applications

·  Smart APP control for remote monitoring & management

·  Customizable high/low voltage for project-specific needs

·  Flexible capacity configuration to meet diverse requirements


Parameters

System Capacity5.12kWh/5kW10.24kWh/5kW16kWh/8kW
Standard discharge current50A50A50A
Max. discharge current100A100A100A
Working DC voltage range43.2-57.6VDC43.2-57.6VDC43.2-57.6VDC
Standard Voltage51.2VDC51.2VDC51.2VDC
Max. charging current50A50A50A
Max. charging voltage57.6V57.6V57.6V
Rated solar input voltage360VDC
MPPT tracking voltage range120V-450V
Max input voltage (VOC) at lowest temperature500V
Max input power5500W5500W+5500W
Number of MPPT ways1 way2 ways
DC input voltage range42-60VDC
Rated grid power input voltage220VAC/230VAC/240VAC
Grid power input voltage range170VAC-280VAC (UPS mode) / 120VAC-280VAC (Inverter mode)
Grid input frequency range45Hz-55Hz (50Hz); 55Hz-65Hz (60Hz)
Inverter output efficiency94%(MAX)
Inverter output voltage220VAC±2%/230VAC±2%/240VAC±2%(Inverter mode)
Inverter output frequency50Hz±0.5 or 60Hz±0.5(Inverter mode)
Inverter output waveformPure Sine Wave
Grid output efficiency>99%
Max mains charging current60A
Max solar charging current100A
Max charging current (Grid+solar)100A
Optional modeGrid priority/Solar priority/Battery priority
