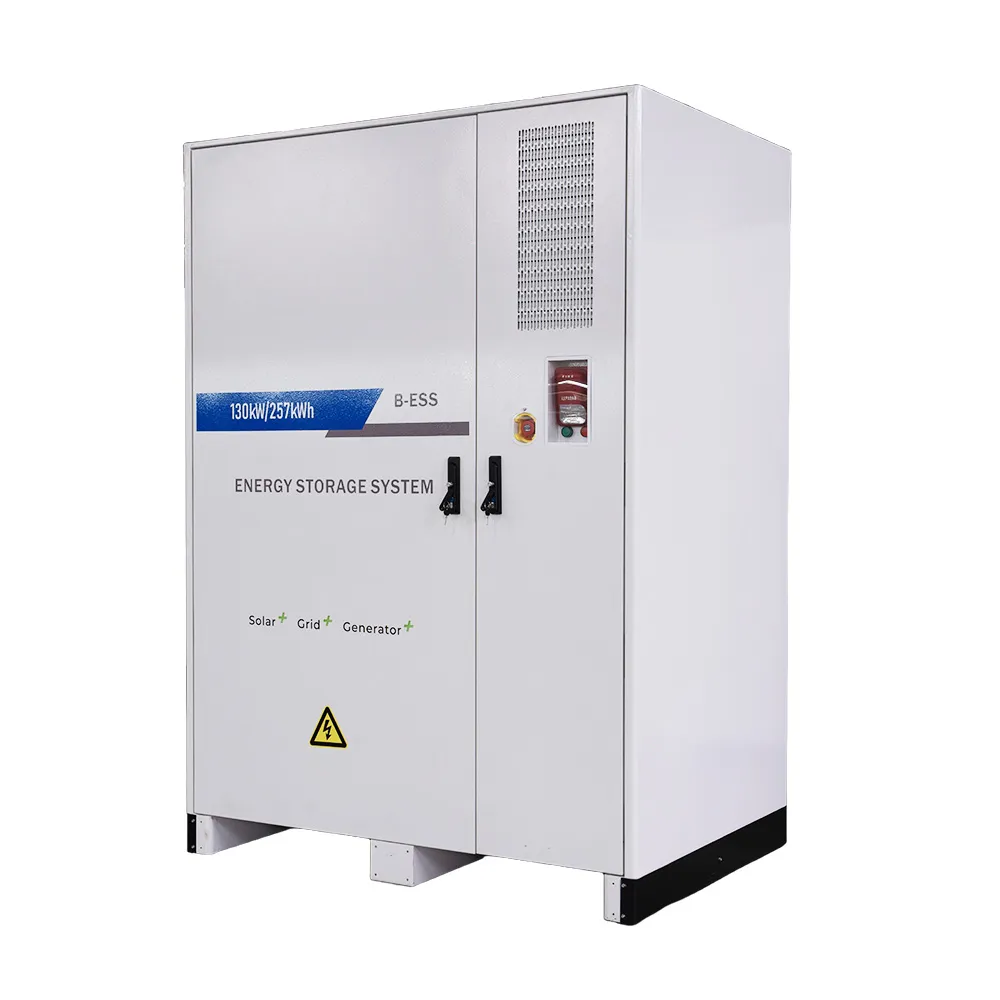

PTBP -130kW/257kWh I&C Energy Storage System - Air cooling
PTBP—Industrial And Commercial Energy Storage

PTBP -130kW/257kWh I&C Energy Storage System - Air cooling

The PTBP air-cooled industrial and commercial energy storage system stands out for its energy efficiency. compactfootprint.high energy density, and robust environmental adaptabilty. This integrated system combines a power conver sion system (PCS).energy management system (EMS), battery management system (BMS), lithium-lon baltery racks, a fire suppression system.electrical components, industrial -grade air conditioning, and safety auxiliaries within a single cabinet.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

The PTBP air-cooled industrial and commercial Energy Storage System stands out for its energy efficiency. compactfootprint.high energy density, and robust environmental adaptabilty. This integrated system combines a power conver sion system (PCS).energy management system (EMS), battery management system (BMS), lithium-lon baltery racks, a fire suppression system.electrical components, industrial -grade air conditioning, and safety auxiliaries within a single cabinet.



It offers broad scenario compatibility. featuring quick and user-friendly grid connection. The system supports simple parallelexpansion with mutiple units and covers a power range of 130 kW to 2,056 kW for both on-grid and of-grid applications. TheEMS enables local autonomous operation with multiple mode selections,supporting operational strategies such as PV+ storage.PV + storage + diesel generator, and PV + storage + EV charging.



Product Features

·  TOP brand battery cells,Quality guaranteed

·  The PACK+ cabinet features dual fire protection,Ensuring a safer system

·  EMS intelligent control,Integration of PV & B-ESS & Generator

·  Flexible deployment, easy wiring,Greater convenience

·  Air-cooled system, strong adaptability,High compatibility, and convenient maintenance

·  Both ON/OFF grid applications,Automatically and intelligently

Parameters

ModelPTBP-257
DC sideBattery cell typeLFP 3.2V/314Ah
Battery system string1P256S
System capacity257kWh
Rated voltage819.2VDC
Voltage range691-921VDC
AC side (On grid)Rated power130kW
Rated frequency50/60Hz
Rated current189A
Rated grid voltage380/400VAC
Grid voltage range360-420VAC
Adjustable range of PF-1(Speed-up)~-1(Delay)
THDi＜3%(Rated power)
AC side (Off grid)Rated power130kW
Rated frequency50/60Hz
Rated current189A
AC voltage range360-420VAC
THDi＜3%(Rated power)
On/Off GridSTS (optional)Standard:240-500kW(Customized >1MW solution)
System parametersSystem efficiencyMAX.efficiency 88% @0.5C /1 Charge 1 Discharge
System lifespan>8000Times(0.5C@25°) Energy retention rate≥80%
Wiring methodAC bottom entry/3-phase 4-wire(3LNPE)
Charge & discharge rate0.5CP
Thermal management methodIntelligent air-cooled air conditioner
Communication protocolCAN/Eth/RS485 (4G Optional)
Fire protection systemAerosol & Perfluorohexanone
IP ratingIP54
Product size1550*1268.5*2185mm
Product weight2800kg
Environmental RequirementsOperating temperature range0°C~+50°C
Operating humidity range0-95%RH(No condensation)
Operating altitude2000m (>2000m Derating)
Certification
PACK:CE ROHS Equipment:UN38.3 MSDS
Warranty
5 Years
