PTBP Industrial & Commercial Energy Storage System 50kW+100kWh High Voltage ESS
PTBP—Industrial And Commercial Energy Storage

PTBP Industrial & Commercial Energy Storage System 50kW+100kWh High Voltage ESS

BMS Protection
High Power
Industrial & Commercial ESS
Smart Communication

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

This industrial and commercial energy storage cabinet adopts air-cooled / liquid-cooled LiFePO4 battery systems and a dual-layer BMS architecture, delivering high safety, efficient thermal management, and stable long-term performance.


Integrated with 30kW / 50kW / 100kW hybrid inverters, the system combines inverter, solar charging, grid charging, and Lithium Battery management into one highly integrated solution. With IP54 outdoor cabinet design, it is ideal for harsh environments and large-scale energy storage applications.



Key Features

Flexible Capacity: 60–215kWh
Supports scalable system configuration for diverse industrial and commercial energy demands.

Air Cooling / Liquid Cooling Options
Ensures efficient thermal control and reliable system operation.

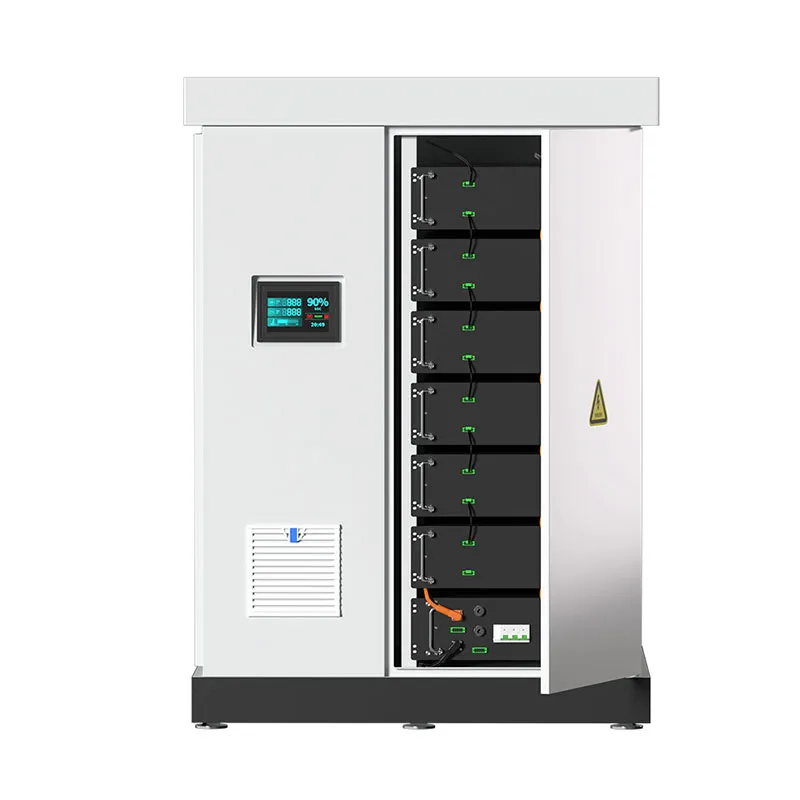

Dual-Layer BMS with LCD Display
Advanced battery management system with real-time monitoring and intuitive on-site control.

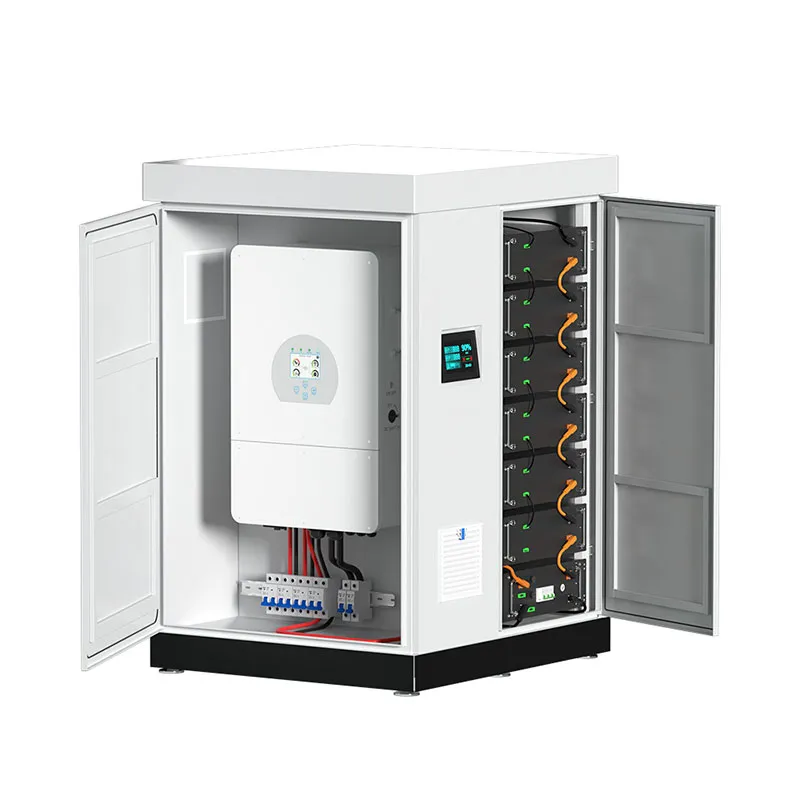

Integrated Hybrid Inverter: 30kW / 50kW / 100kW
Combines inverter, PV charging, grid charging, and battery management in one unit.

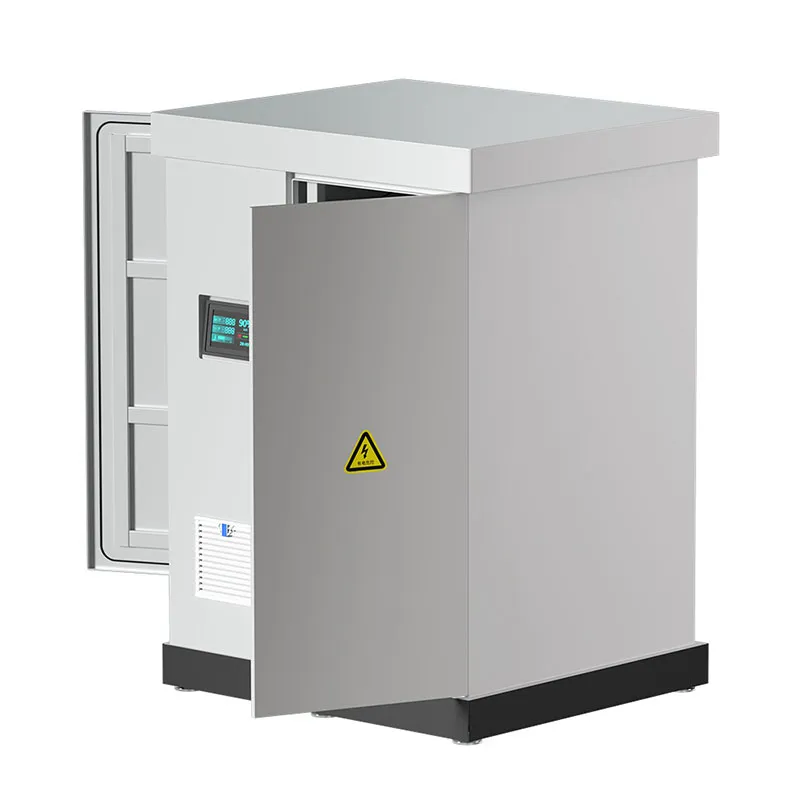

Outdoor Cabinet Design – IP54 Protection
Highly integrated structure suitable for outdoor installation and harsh environments.

Optional Integrated Accessories
Supports air conditioning, liquid cooling, lighting, power distribution, fire protection, and environmental monitoring.


Application Areas

Industrial & Commercial Enterprises

Data Centers & Infrastructure Projects

Mobile Energy Storage & Power Quality Management


Parameters

ModelPTBP-30000PTBP-50000PTBP-100000
AC Output Specification
Rated AC Input/Output
Active Power(W)		30000W50000W100000W
Peak Power(off grid)1.5 time of rated power, 10 S
AC Output Rated Current(A)45.6A75.8A151.6A
Max. AC Current(A)60A83.3A166.6A
Output Frequency and Voltage50/60Hz:3 L/N/PE 220/380,230/400Vac
Grid TypeThree Phase
Total Harmonic Distortion(THD)＜3% (of no minal power)
PV Input Specification
Max. PV Input Power(W)39000W65000W
Max. PV Input Voltage (V)1000V
MPPT Range(V)150-850V300-900V
Start-up Voltage(V)180V300V
Full Load MPPT Voltage Range(V)360-850V450-850V500-900V
Rated PV Input Voltage (V)
600V
PV Input Current(A)36+36+3636+36+36+3650A+50A+50A+50A
Max.PV Isc(A)55+55+5555+55+55+5560A+60A+60A+60A
No. of MPP Trackers344
No.of Strings per MPP Tracker21
Battery Specification
Spec Of Each ModuleLFP 102.4V 100AH 10.24kWhLFP 51.2V 200AH 10.24kWhLFP 153.6V 280AH 43kWh
Module Number6105
Battery System Capacity61.44kWh102.4kWh215kWh
Battery Voltage Range537.6V-691.2V432V-576V600V-876V
Basic Parameter
Overall Dimensions
(width *depth * Height)		1170*1031*1635mm1170*1031*1835mm1500*1550*2300mm
Weight900KG1500KG2430KG
Cooling ModeFan cooling, Air-conditioner cooling and Liquid cooling optional
Class Of ProtectionIP54
