PTDKJ-Container Energy Storage System - Air cooling
Utility-Scale Energy Storage Systems

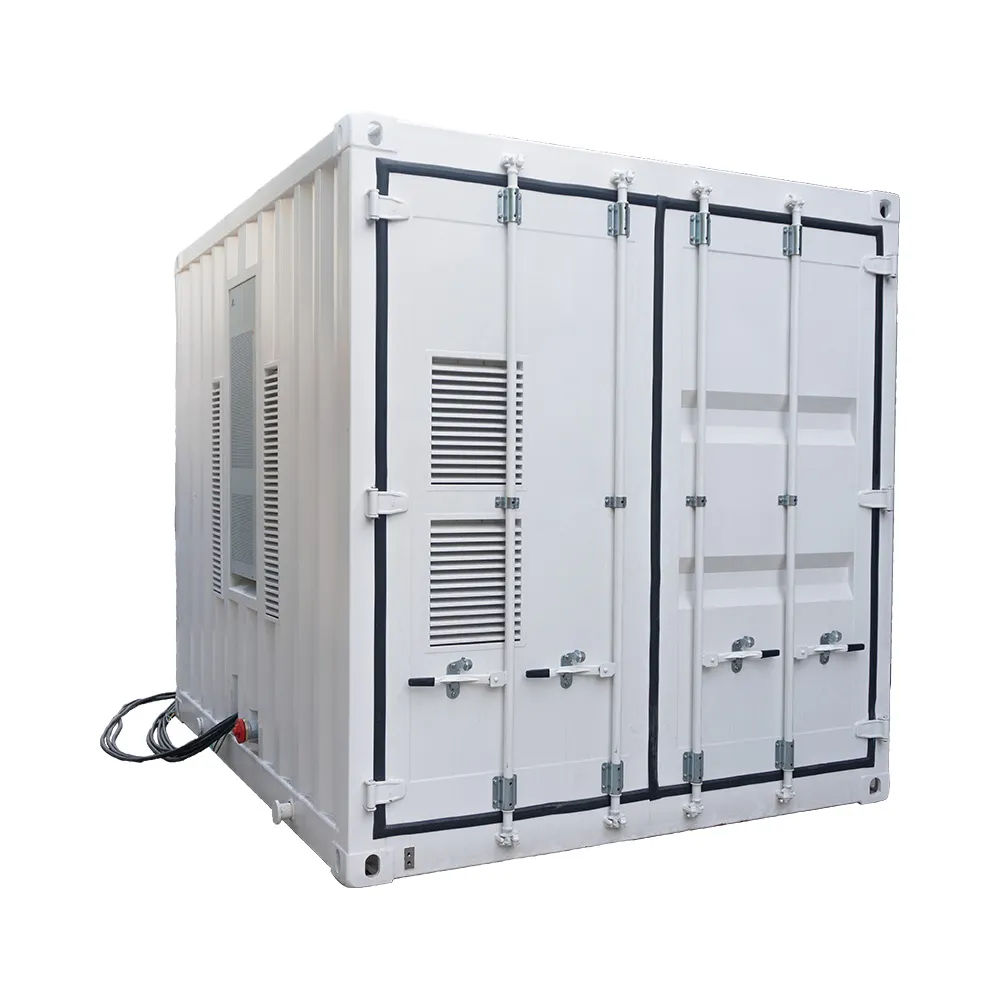

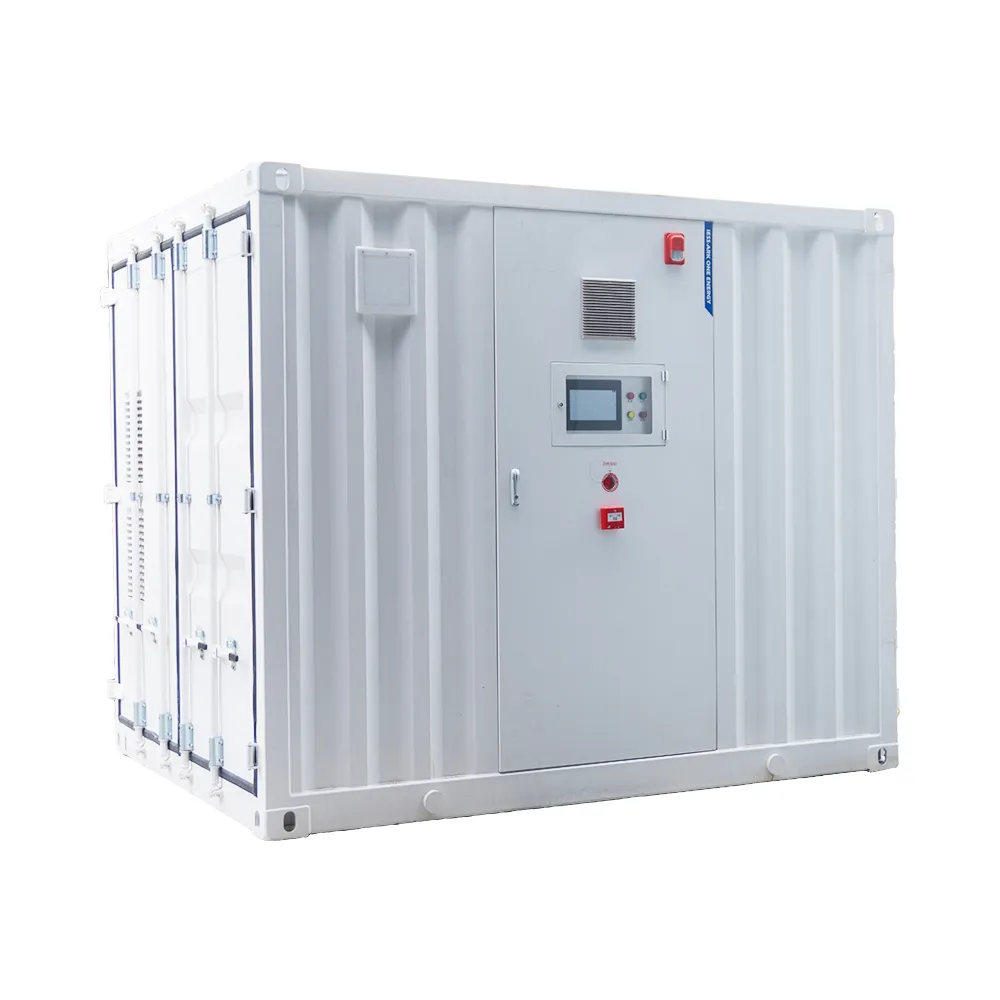

PTDKJ-Container Energy Storage System - Air cooling

The PTDKJ air-cooled container energy stora ge battery is an energy storage device designed specifically for industrialand commercial energy storage systems. With its independent battery cluster design, itallowsforflexible configurationof industrial and commercial systems. It supports parallel operation of mutiple clusters and can be flexibly integratedinto DC-coupled and AC-coupled photovoltaic and energy storage systems. The device features energy efficiency, smallfootprint, high energy density, and strong environmental adaptability.

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

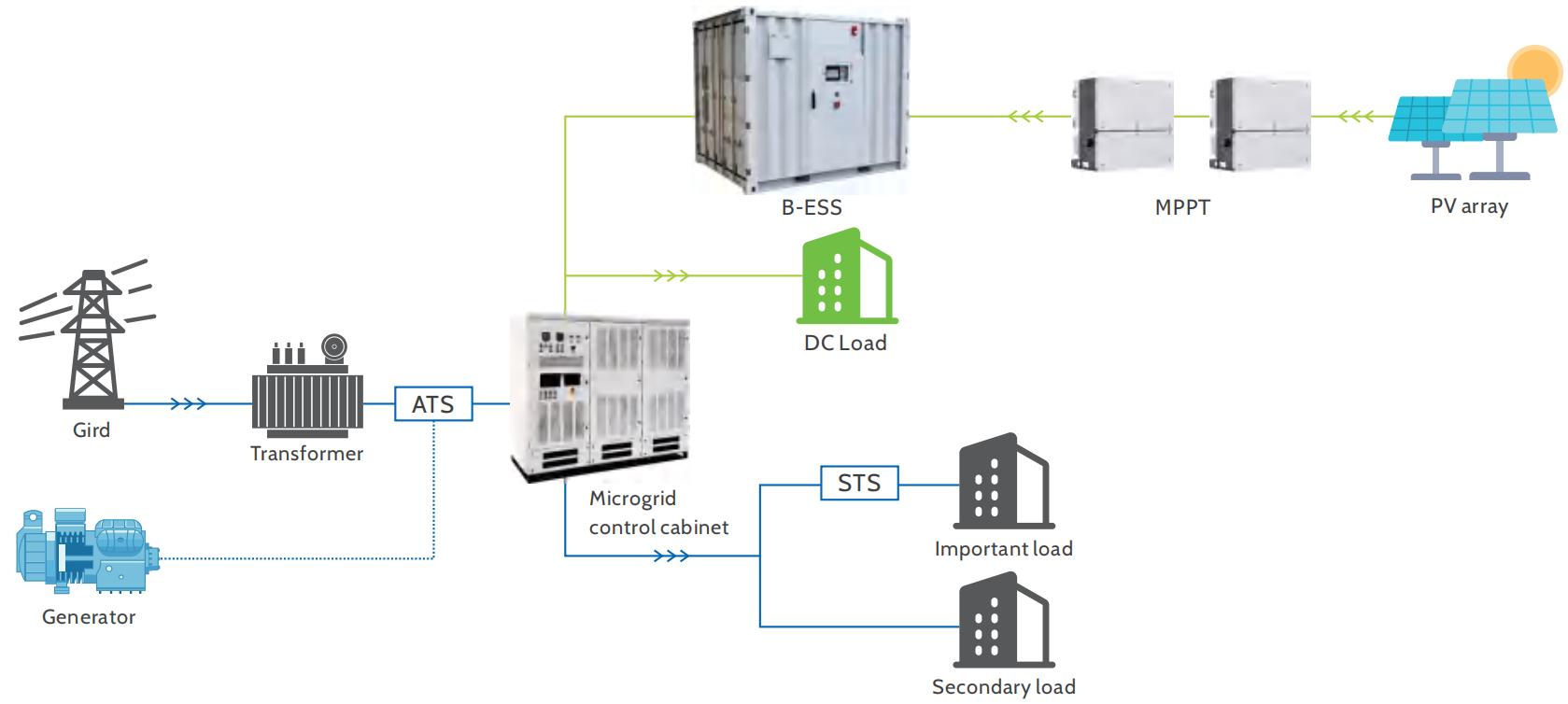

The PTDKJ air-cooled container energy stora ge battery is an energy storage device designed specifically for industrialand commercial Energy Storage Systems. With its independent battery cluster design, itallowsforflexible configurationof industrial and commercial systems. It supports parallel operation of mutiple clusters and can be flexibly integratedinto DC-coupled and AC-coupled photovoltaic and energy storage systems. The device features energy efficiency, smallfootprint, high energy density, and strong environmental adaptability.



Product Features

·  TOP brand battery cells,Quality guaranteed

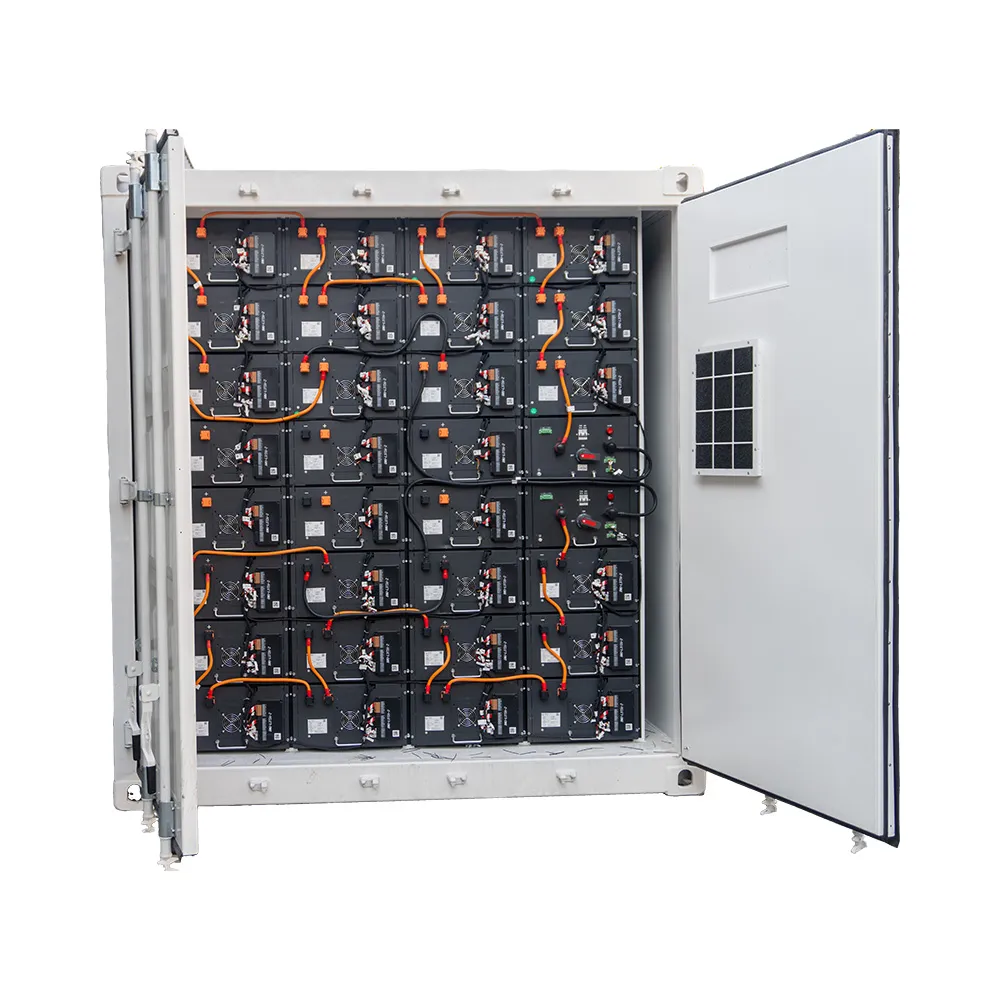

·  The PACK+ cabinet features dual fire protection,Ensuring a safer system

·  EMS intelligent control,Integration of PV & B-ESS & Generator

·  Flexible deployment, easy wiring,Greater convenience

·  Air-cooled system, strong adaptability,High compatibility, and convenient maintenance

·  Both ON/OFF grid applications,Automatically and intelligently




Parameters

ModelPTDKJ-1MPTDKJ-1.2M
DC SideRated capacity1060kWh1215kWh
Cell typeLFP 3.2V/314AhLFP 3.2V/314Ah
Battery system string4P264S5P242S
PACK specification70.4V314Ah70.4V314Ah
NO. of PACKs48 PCS55 PCS
Nominal voltage844.8VDC774.4VDC
Voltage range680-950VDC680-950VDC
Standard charge/discharge current200A200A
System parametersSystem efficiencyMAX.efficiency 88% @0.5C / 1 Charge 1 Discharge
System lifespan>8000Times(0.5C@25°) Energy retention rate≥80%
Wiring methodDC bottom entry
Charge & discharge rate0.5CP
Thermal management methodIntelligent air-cooled air conditioner
Communication protocolCAN/Eth/RS485(4G Optional)
Fire protection systemAerosol & Perfluorohexanone
IP ratingIP54
Product size3048*2438*2591mm
Product weight9500kg10500kg
Environmental RequirementsOperating temperature range0℃~+50℃
Operating humidity range0~95%RH(No condensation)
Operating altitude2000m (>2000m Derating)
CertificationPACK:CE ROHS UN38.3 MSDS
Warranty5 Years
