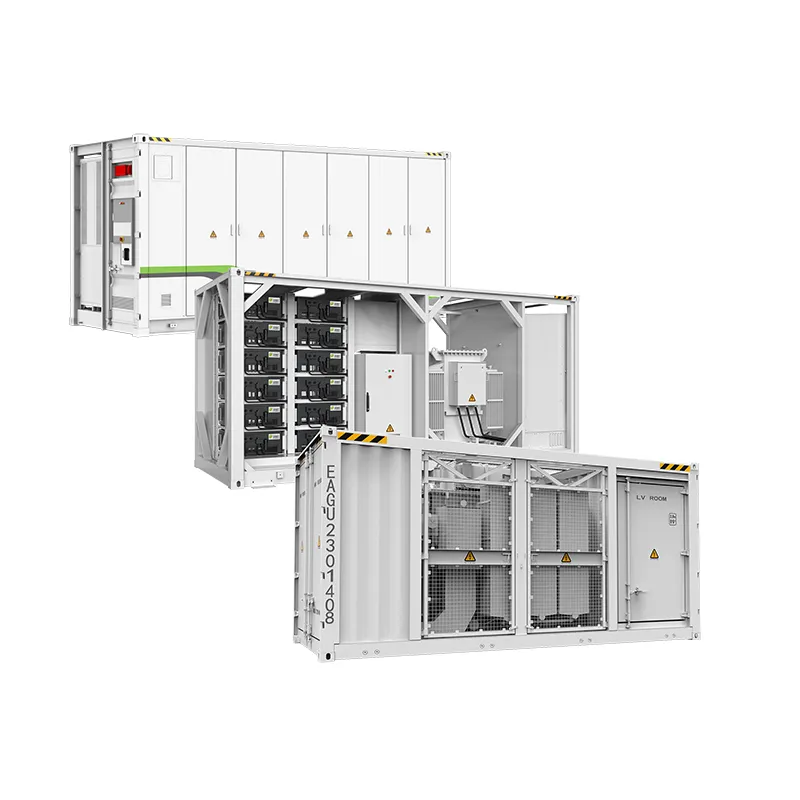

PTPS 9.6MW20MWh Utility-Scale Energy Storage System
Utility-Scale Energy Storage Systems

PTPS 9.6MW20MWh Utility-Scale Energy Storage System

Pre-Assembled Containerized Design
Compartmentalized System Structure
Factory Pre-Assembly and Testing
Large-Scale System Capacity
Cluster-Level Intelligent Management
Flexible Expansion and Maintenance
High Protection Level

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

Pre-Assembled Containerized Design
The system adopts a pre-assembled architecture with standard container transportation, enabling easy delivery and rapid deployment.

Compartmentalized System Structure
The battery, PCS, and transformer are designed in separate compartments to isolate faults and allow flexible system configuration.

Factory Pre-Assembly and Testing
All equipment is pre-assembled and tested at the factory, ensuring quick installation and fast grid connection on site.

Large-Scale System Capacity
The system supports a maximum capacity of 9.6MW, reducing equipment quantity and overall system costs.

Cluster-Level Intelligent Management
The one-cluster-one-management design eliminates circulating currents between clusters, improving system reliability and availability.

Flexible Expansion and Maintenance
Modular system design enables convenient maintenance and easy future capacity expansion.

High Protection Level
The system features a high-level protection design, ensuring stable operation in various environmental conditions.


Parameters

Model Name

ItemSpecification
Model Name (Battery Container, PCS Skid, PMVS transformer)PTPS ES-9.6MW/20MWh-EU
Battery ContainerPTPS ES-5015KWH
PCS SkidPTPS PSW4.8M-EU
PMVSPTPS PSA9.6MO



Battery Parameter

ParameterSpecification
Battery Capacity4 × 5MWh
Battery CellLFP 314Ah
Pack Configuration1P52S
Battery Configuration4 × 12P416S
Rate Voltage1331.2V
Operating Voltage Range1164–1497V



PCS Parameter

ParameterSpecification
Rated AC Output Power @ PF ≥ 0.992 × 2.4 × 200kW
Operating DC Input Voltage Range950–1500V
Output Voltage800Vac (704–880Vac)
Grid Connection Type3-Phase / PE
Max. AC Output Current @ 800Vac24 × 145A / 2 × 1735A
Grid Frequency50Hz
Grid Frequency Range45–55Hz
DC/AC Surge ProtectionType II



PMVS Parameter

ParameterSpecification
Rated Input Voltage800V
Rated AC Output Power9.6MW
Medium Voltage Rating6–35kV
Grid Frequency50Hz
Grid Frequency Range45–55Hz
Vector GroupDy11-y11
Cooling MethodONAN
Surge ProtectionType II



System Parameter

ParameterSpecification
Protection DegreePCS Skid: IP54 / Battery Container: IP55 / PMVS: IP54
Cooling MethodPCS Skid: Variable speed cooling fans; Batteries: Liquid Cooling; PMVS: ONAN
Operating Temperature Range-20°C to 50°C (derating from +45°C)
Operating AltitudePCS: 3000m (no derating); Battery Container: 2000m; PMVS: 1000m
Operating Humidity0–95%, non-condensing
PCS Skid Weight11T
Battery Container Weight4 × 41.8T
PMVS Weight<30T
Dimensions (W × H × D)6058 × 2896 × 2438 mm



Display and Communication

ParameterSpecification
CommunicationRS485 / Ethernet / CAN
Communication ProtocolModbus-TCP / RTU



Safety

ItemStandards
BatteryIEC 62477 / IEC 61000 / IEC 62619 / IEC 63056 / ISO 14067
PCSIEC 61000 / IEC 62477 / IEC 62109 / IEC 62920
PMVSIEC 62271-202 / IEC 60076-1 / IEC 62271-200 / IEC 61439-2



Product specifications and dimensions may be updated based on the latest information provided and are subject to change without prior notice.
