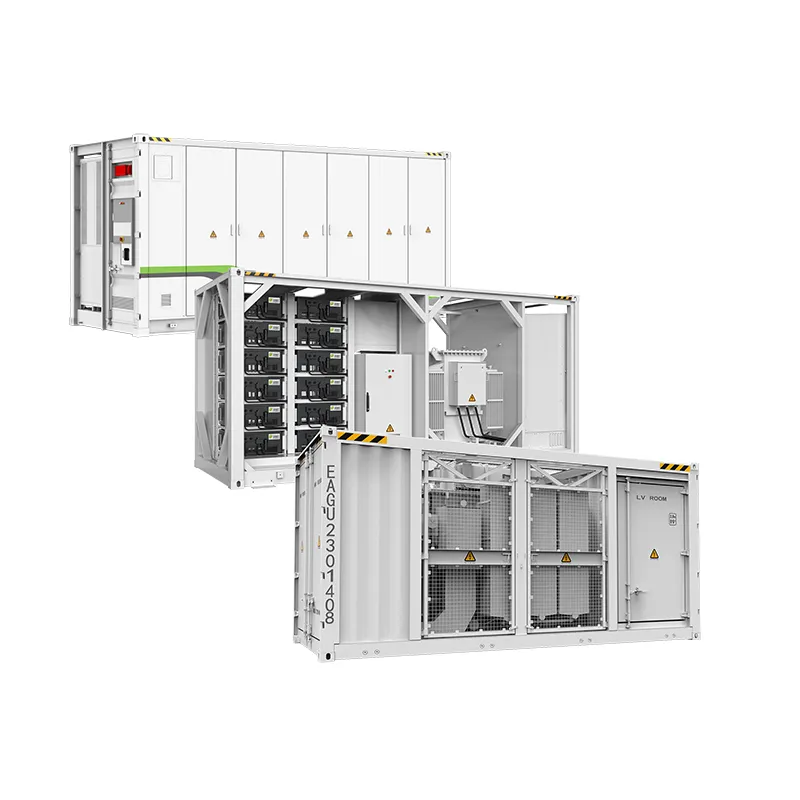

PTPS 2MW2.4MWh Utility-Scale Energy Storage System
Utility-Scale Energy Storage Systems

PTPS 2MW2.4MWh Utility-Scale Energy Storage System

Fully integrated system
High energy density
Modular system design
Outdoor-rated design (IP54)
Flexible battery expansion
Comprehensive fire protection system
Intelligent cooling control
Rack-level monitoring and management

+8613736779975

+8613736779975
sales@vcbbreaker.com

sales@vcbbreaker.com
http://www.prominentcn.com/

http://www.prominentcn.com/
No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

No.66 Punan Road, Yueqing Economic Development Zone, Zhejiang, China

Detailed Description

Fully integrated system with minimal on-site installation and commissioning effort

High energy density: up to 5MWh battery capacity in a single 20ft container and 2.4MW PCS skid in a 20ft container

Modular system design, reducing O&M costs and enabling flexible capacity expansion

Outdoor-rated design (IP54) for reliable operation in various environmental conditions

Flexible battery expansion, allowing integration of both new and existing battery racks

Comprehensive fire protection system to ensure maximum operational safety

Intelligent cooling control to enhance battery performance and extend lifecycle

Rack-level monitoring and management for the ESS, improving system availability and efficiency


Parameters

Model Name
(PCS Skid, Battery Container)		PCS Skid: PTPS PSW2.4M-EU
Battery Container: PTPS ES-5015KWH-EU		PCS Skid: PTPS PSW2M-EU
Battery Container: PTPS ES-4179KWH-EU
Battery Parameter
Battery Capacity5MWh2×5MWh4.179MWh2×4.179MWh
Battery CellLFP 314Ah
Pack Configuration1P52S
Battery Configuration1×12P416S2×12P416S1×10P416S2×10P416S
Rate Voltage1331.2V
Operating Voltage Range1164~1497V
Electrical Parameter
Rated AC Output Power2.4MW2MW
Medium Voltage Rating13.8kV, 15kV, 20kV, 30kV, 33kV, 34.5kV
Grid Frequency50Hz / 60Hz
Vector GroupDy1, Dy11
Cooling MethodONAN
System Parameter
Protection DegreePCS Skid: IP54 ; Battery Container: IP54
Cooling MethodPCS: Air Cooling, Batteries: Liquid Cooling
Operating Temperature Range-20°C to 50°C
Operating Altitude≤6562ft / 2000m
Operating Humidity0–95%, non-condensing
PCS Weight12.9T12.9T12T12.5T
Battery Container Weight43T2×43T37T2×37T
Dimensions (W×H×D)PCS Skid: 238.5 × 114.0 × 96.0 in / 6058 × 2896 × 2438 mm
Battery Container: 238.5 × 114.0 × 96.0 in / 6058 × 2896 × 2438 mm
Display and Communication
CommunicationRS485 / Ethernet / CAN
Communication protocolModbus-TCP / RTU
Safety
Certifications and StandardsBattery: IEC 62477 / IEC 61000 / IEC 62619 / IEC 63056
PCS: UL1741, CSA-22.2 NO.107.1-16, IEEE1547-2018
FCC Part 15, IEC61000, IEC62477, IEC62109, EN50549, VDE 4110&4120, NTS2.1
Product specifications and dimensions may be updated based on the latest information provided and are subject to change without prior notice.
